600tvl 1/4 1.8mm 170 Diy Professional Camera Fpv Servo Degree Wide Angle Lens Pal

$8.99

 Description:

  • Resolution: 1280 * 960
  • Resolution: 600TVL
  • Camera Dimensions: 12.5mm * 12.5mm * 17mm
  • Lighting: 0.5LUX
  • Format: PAL / NTSC
  • Power supply range: 3.7-5 V100mA
  • Audio Lens: 1.8mm Wide-Angle Lens (170 degrees)
  • Image Sensor: 1/4 CMOS Image Sensor
  • Sensitive area: 3.5964mm x 2.7084mm
  • 648 pixels (horizontal) x 488 (vertical) 648 (horizontal) x 488 (vertical)
  • Horizontal scanning frequency: 15.625 KHz
  • Vertical: 50Hz
  • Level: 15.7343 KHz
  • Vertical: 60Hz
  • Electronic shutter 1 / 50-1 / 80000 (s) 1 / 60-1 / 80000 (sec)
  • SNR ≥48dB (AGC OFF)
  • Minimum illumination: 0.1 Lux / F1.2
  • Composite video signal: 1.0Vp-p 75Ω
  • Standard lens: 1.8mm
  • Specifications PCB: 20mm * 20mm
  • Power supply: DC5V ± 10% ± 70mA 10%
  • Operating temperature: -10 degrees ~ 60 degrees Max RH95%

Note: it is only support 3.7-5 V voltage, the book manual 5-12 V voltage is wrong.

    Package Included:

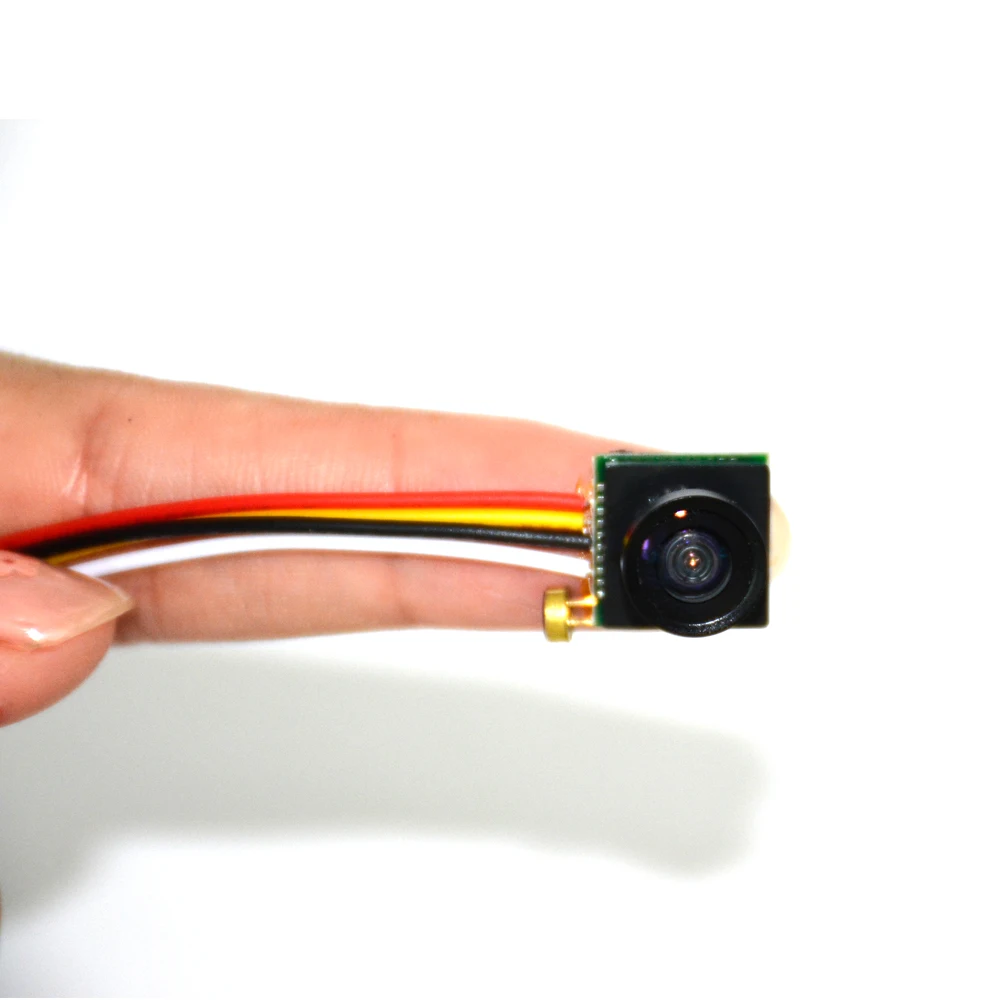

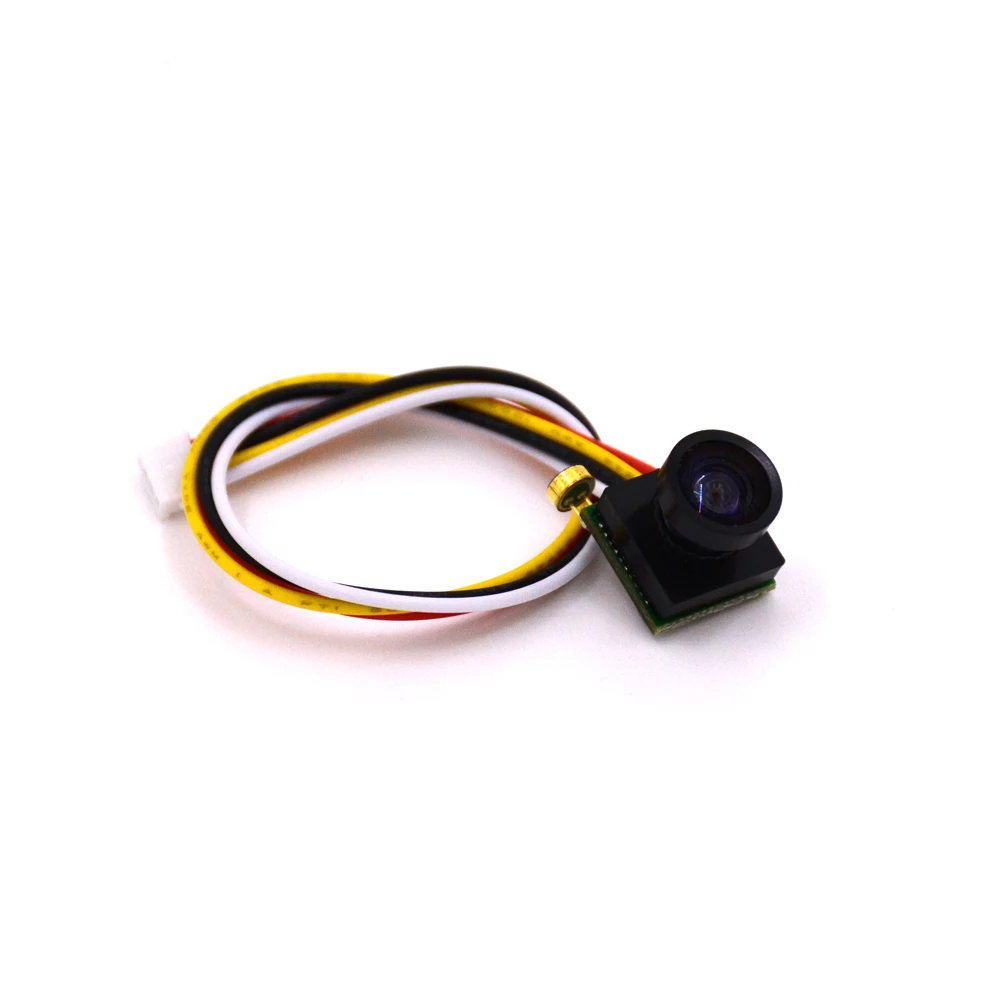

    • 1 x 600TVL Camera with Wide Angle Lens

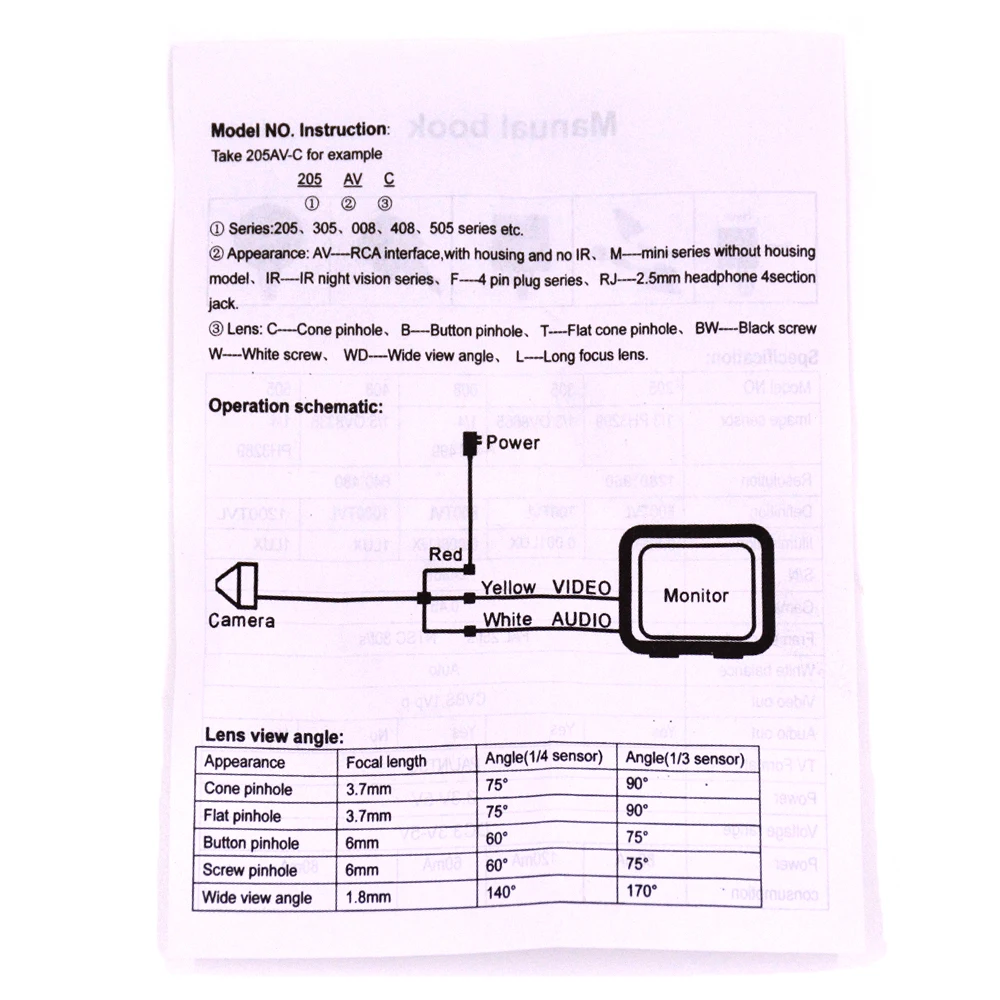

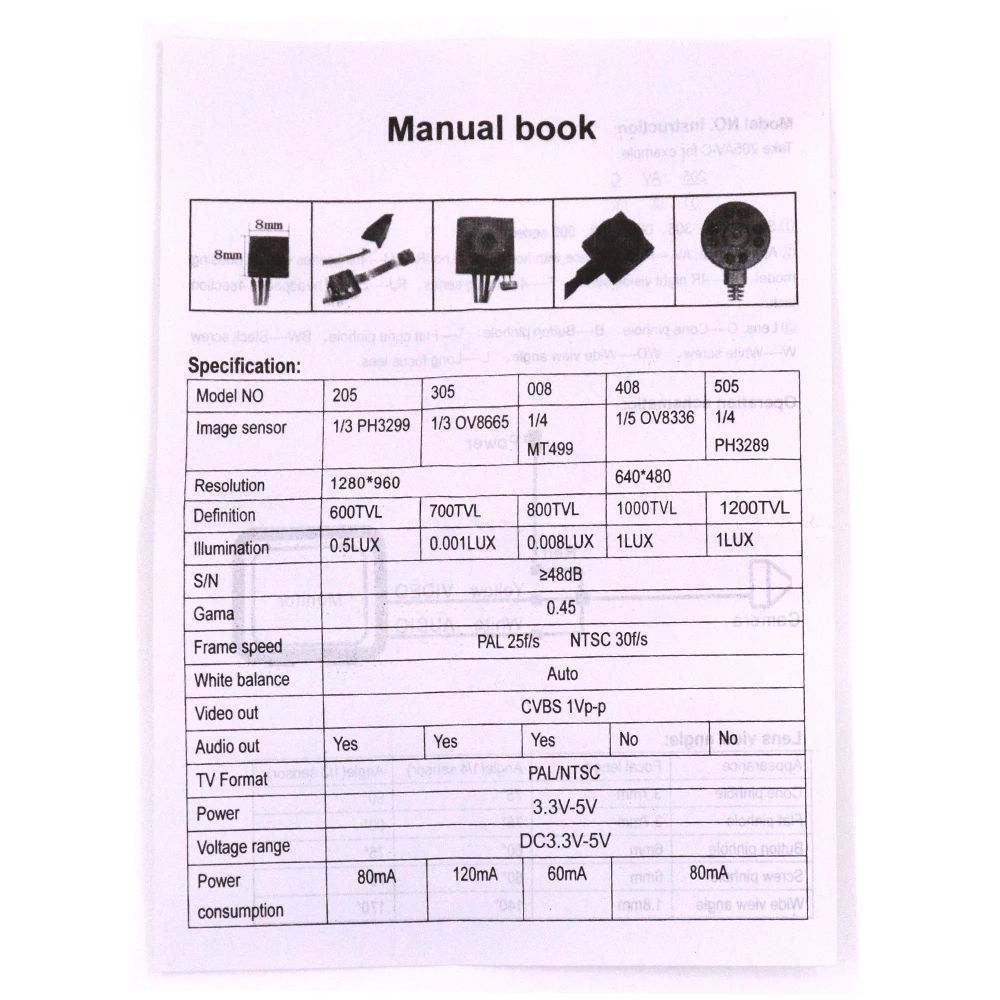

    • manu instructions
    Features:
    • Use: Vehicles & Remote Control Toys
    • Remote Control Peripherals/Devices: Remote Controller
    • Material: Composite Material
    • Upgrade Parts/Accessories: Frame
    • RC Parts & Accs: Antennas
    • Technical parameters: Value 2
    • For Vehicle Type: Airplanes
    • Model Number: 600TVL
    • Four-wheel Drive Attributes: Assemblage
    • Tool Supplies: Battery
    • Brand Name: LHI
