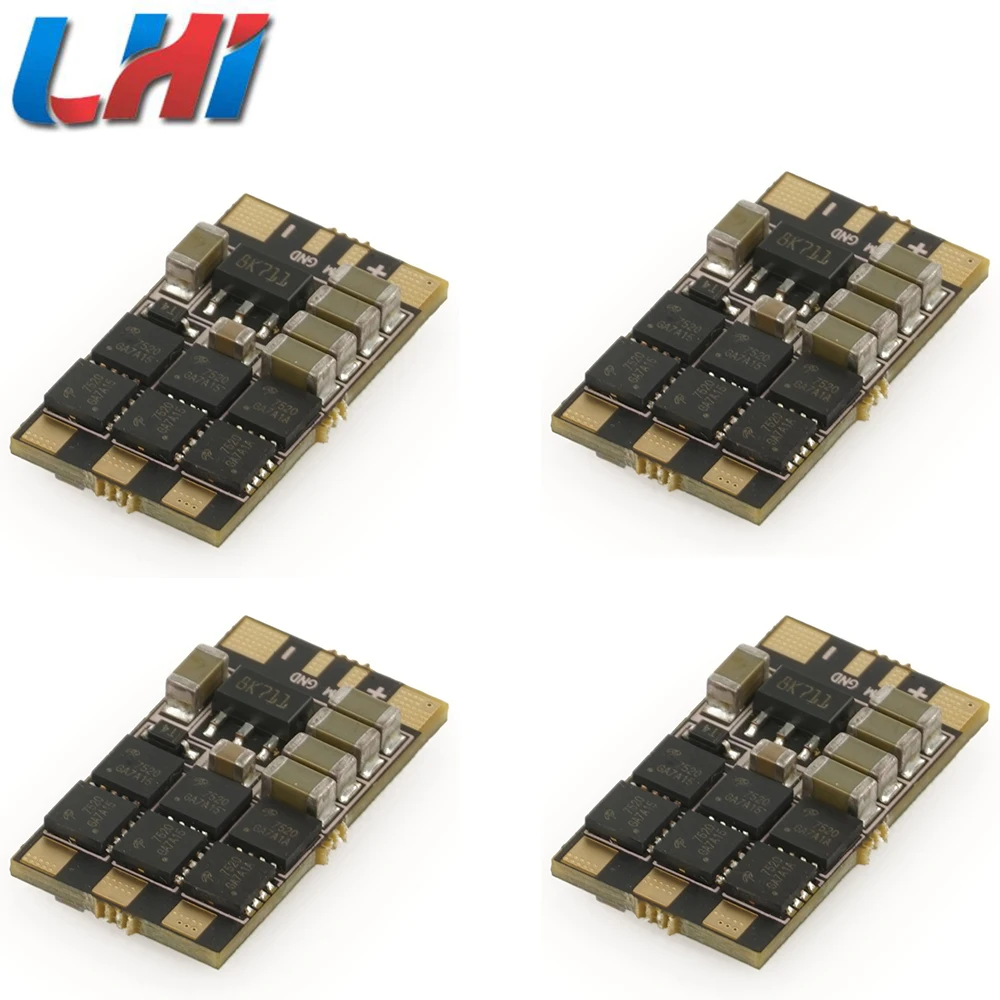

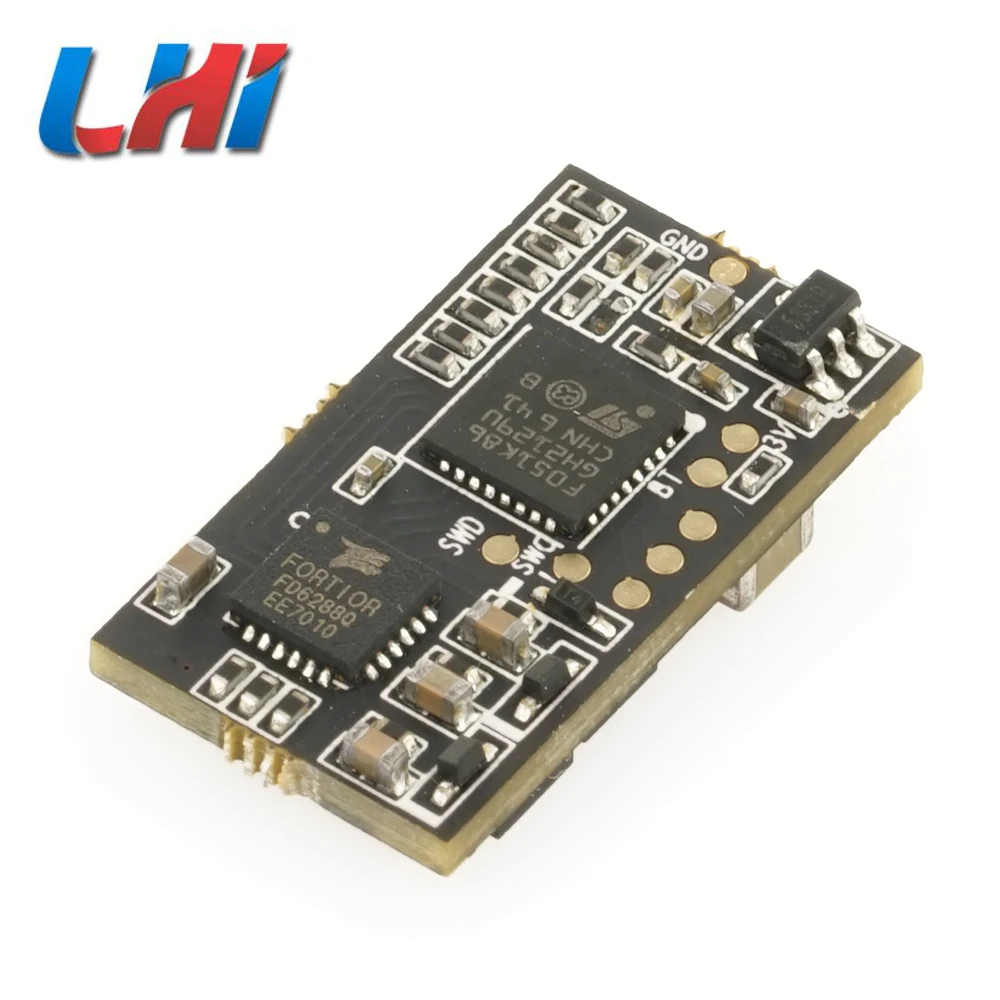

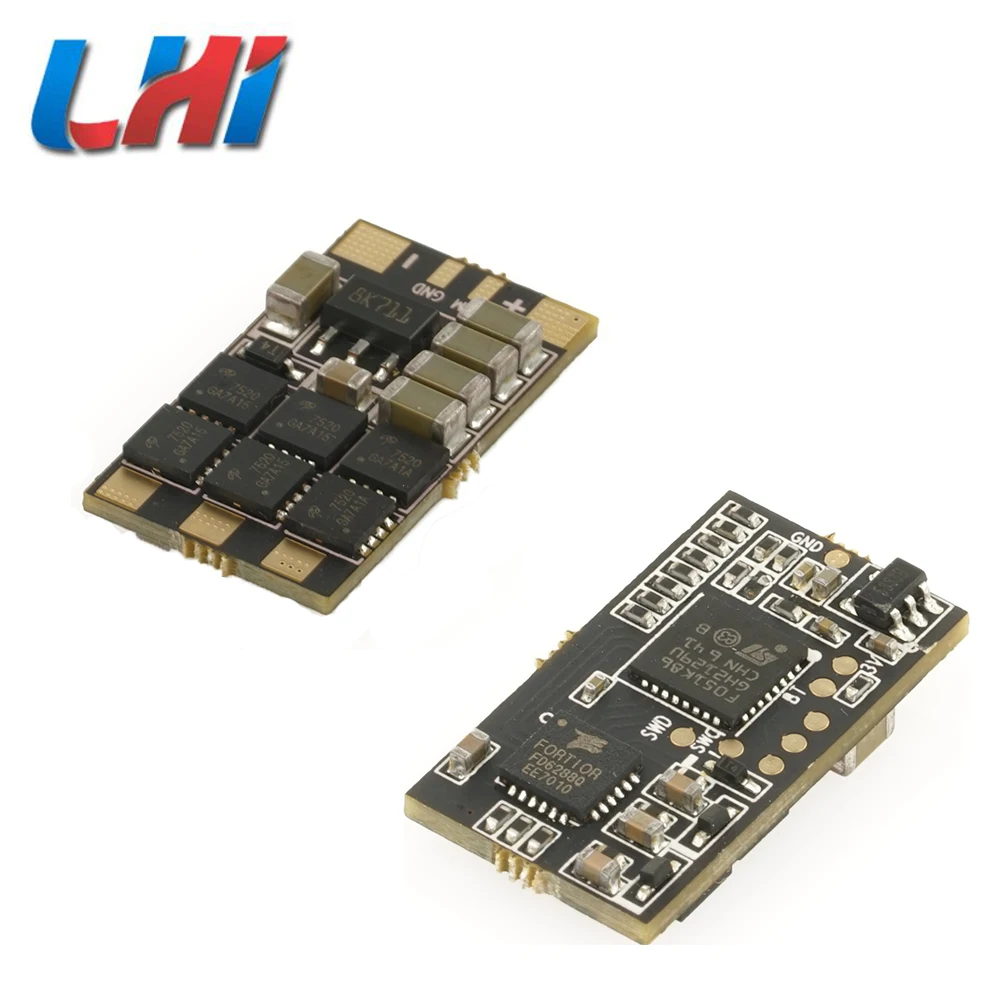

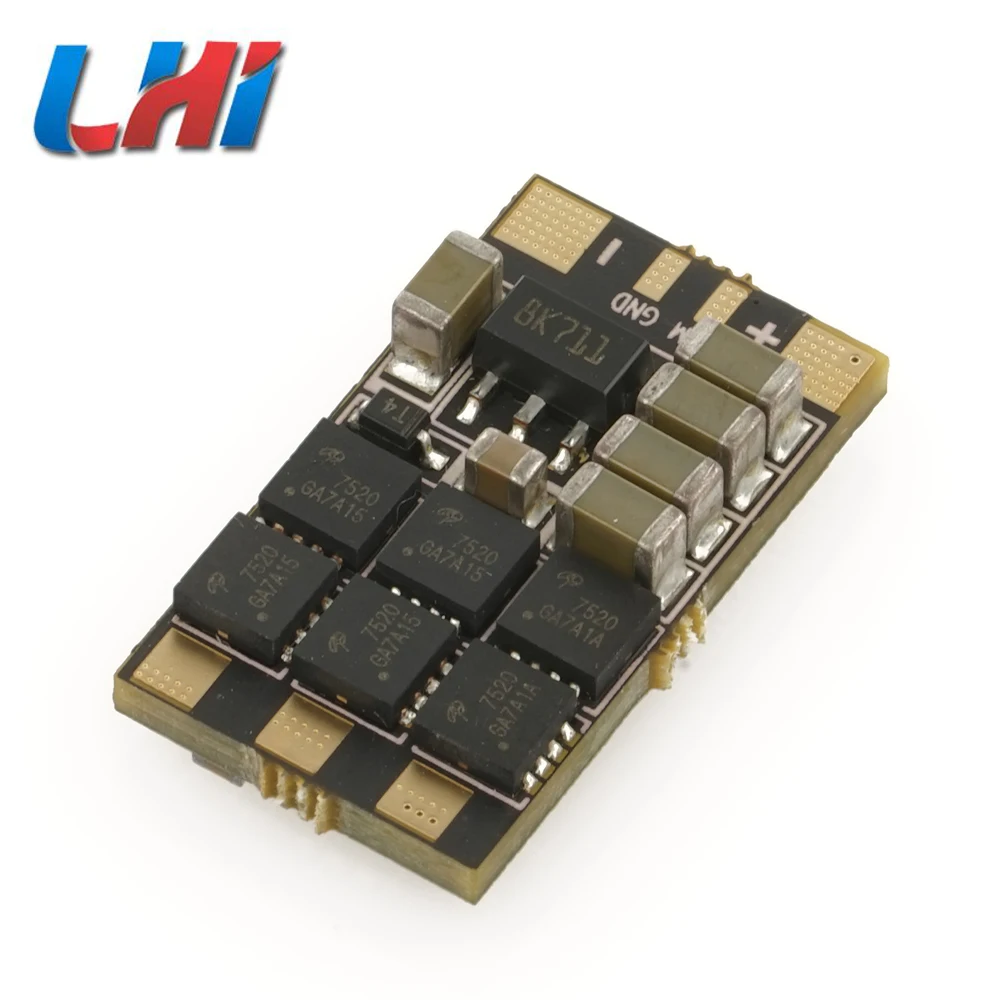

Lhi 4pcs Wraith32-Mini 25A 32bit BLHeli_32 ESC OPTO (2-4s)

$75.99
Color

The 32bit processors run faster than those with 8bit, resulting in a better performance with the new 32bit ESCs. Faster input signals and less latency coupled with a higher updaterate are possible, such as DSHOT1200.

The 32bit platform also allows for more functionality and new features which were simply not possible with 8bit ESCs, such as:

  • - Programmable PWM frequency up to 48KHz
  • - Auto-timing for greater efficiency and reliability
  • - Voltage / current current limit
  • - adjustable "braking at stop" force
  • - Better directional changes in bidirectional mode
  • - Set the FC with DSHOT commands

Technical specifications:

  • Input voltage: 2-4s Lipo
  • Continuous current: 25 A
  • Peak current: 30 A
  • BEC: no BEC
  • Size:: Length: 21.2mm * Width: 11.7mm
  • Weight: 1.6g (without motor cable)
  • Benefits of BLHeli_32 firmware on 32-bit ESC
  • 32bit processors run faster than 8bit, at which we can expect better performance from the new 32bit ESC's. Faster input signals with lower latency and higher update rate. Dshot1200 or even faster protocols! (Read about DShot)
  • The 32-bit platform also allows more functionality and features
  • - Programmable PWM frequency of up to 48KHz
  • - Auto-timing for higher efficiency and realiability
  • - Voltage / Current limiting
  • - Adjustable "Brake on Stop" force
  • - Improve direction change in bidirectional mode
  • - Configuring from FC using DShot commands
  • Sychronous rectification technology adds efficiency,
  • Powerful regenerative braking / active braking.
  • 2-4s LiPo battery compatible
  • DSHOT 1200 compatible!

Specs:

  • Input: 2-4s LiPoly
  • Constant: 25 Amps
  • Burst: 30 Amps
  • BEC: No BEC, OPTO only
  • Dimension: Length 21.2mm * Width 11.7mm
  • Weight: 1.6g (without motor wires)
MINI25Amini25A010DSC06552DSC06554



  • Use: Vehicles & Remote Control Toys
  • Material: Composite Material
  • Remote Control Peripherals/Devices: ESC
  • Upgrade Parts/Accessories: Frame
  • Technical parameters: Value 2
  • For Vehicle Type: Airplanes
  • RC Parts & Accs: Speed Controllers
  • Four-wheel Drive Attributes: Assemblage
  • Tool Supplies: Assembled class
  • Model Number: wraith32 mini25A
  • Brand Name: LHI
