Lhi Dx2205 2300kv+Lite 20a ESC

$67.99

4pcs DX2205 2300KV Brushless Motor &4 pcs Racerstar RS20A Lite 20A

  • Blheli-S BB1 2-4S Brushless ESC for FPV Racing Quadcopter

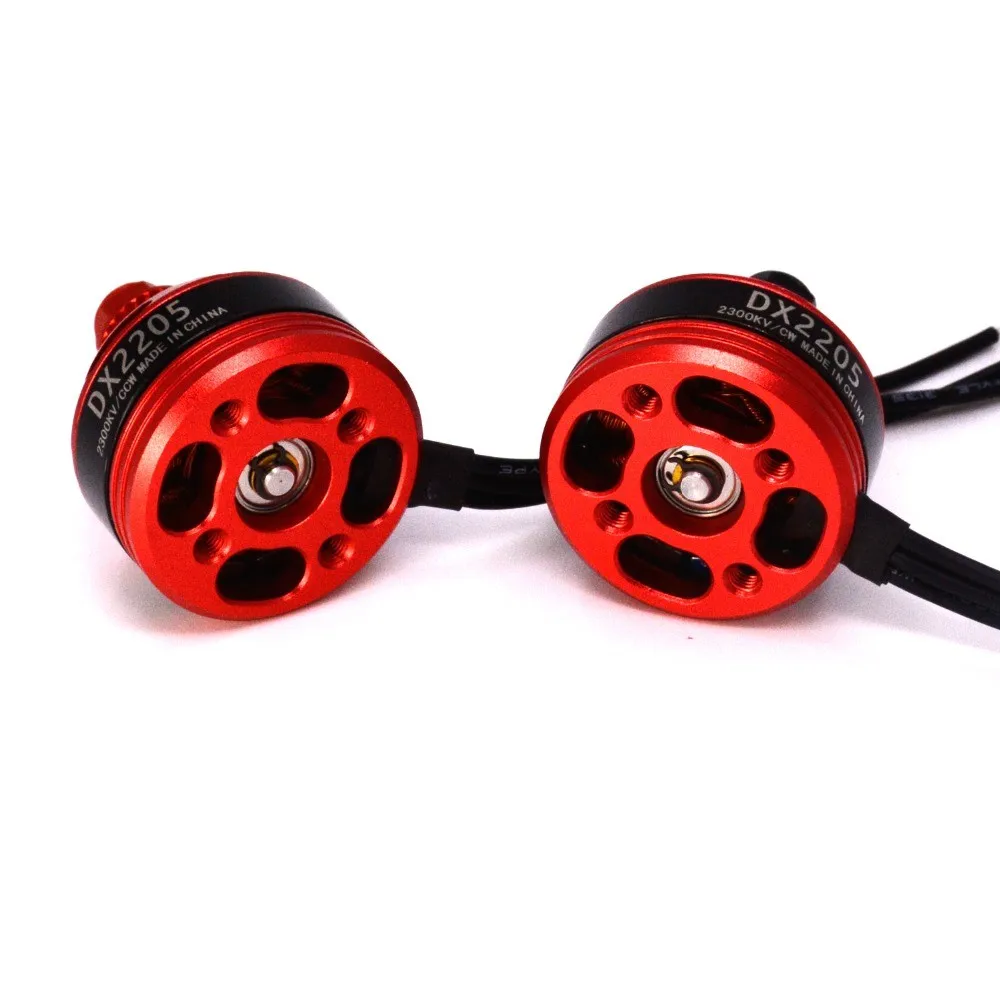

  • 4pcs DX2205 2300KV Brushless Motor for 250 FPV Racing Quadcopter 2CW 2CCW

Features:

  • CW and CCW propeller adapters, holding propellers tightly.
  • Adopts Japanese Kawasaki stator, with high efficiency and low heat

Specification:

  • KV:2300
  • Configuration: 12N4P
  • Stator Diameter: 22mm
  • Stator Length: 6mm
  • Shaft Diameter: 3mm
  • Motor Dimensiom: φ27.5*30.25mm
  • Weight: 29g
  • Ille Current(10)@10V: 0.45A
  • No, of Cells(Lipo):3-4s
  • Max Continuous Power(180S): 270W
  • Internal Resistance:65mΩ
  • Max Current(180S): 24A
  • Max.Efficiency Current: (4-8A)

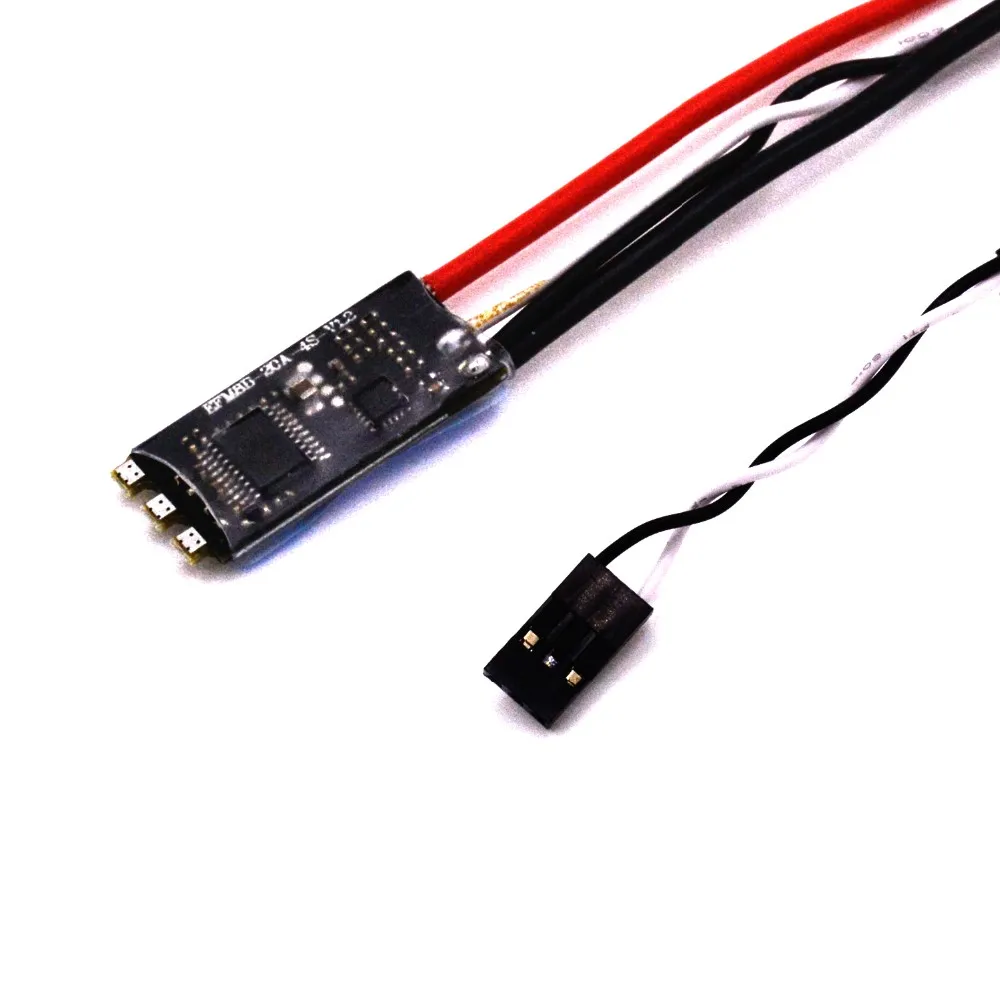

  • 4 PCS Racerstar RS20A Lite 20A Blheli_S BB1 2-4S Brushless ESC for FPV Racer

Specification:

  • Brand Name: Racerstar
  • Model: RS20A Lite
  • Item Name: 20A Blheli_S 2-4S Brushless ESC
  • Input Voltage: 2-4S
  • Con.Current:20A
  • Peak Current(10s):25A
  • BEC:NO
  • Programming :YES
  • Net Weight: 6.8g
  • Size:24*14mm

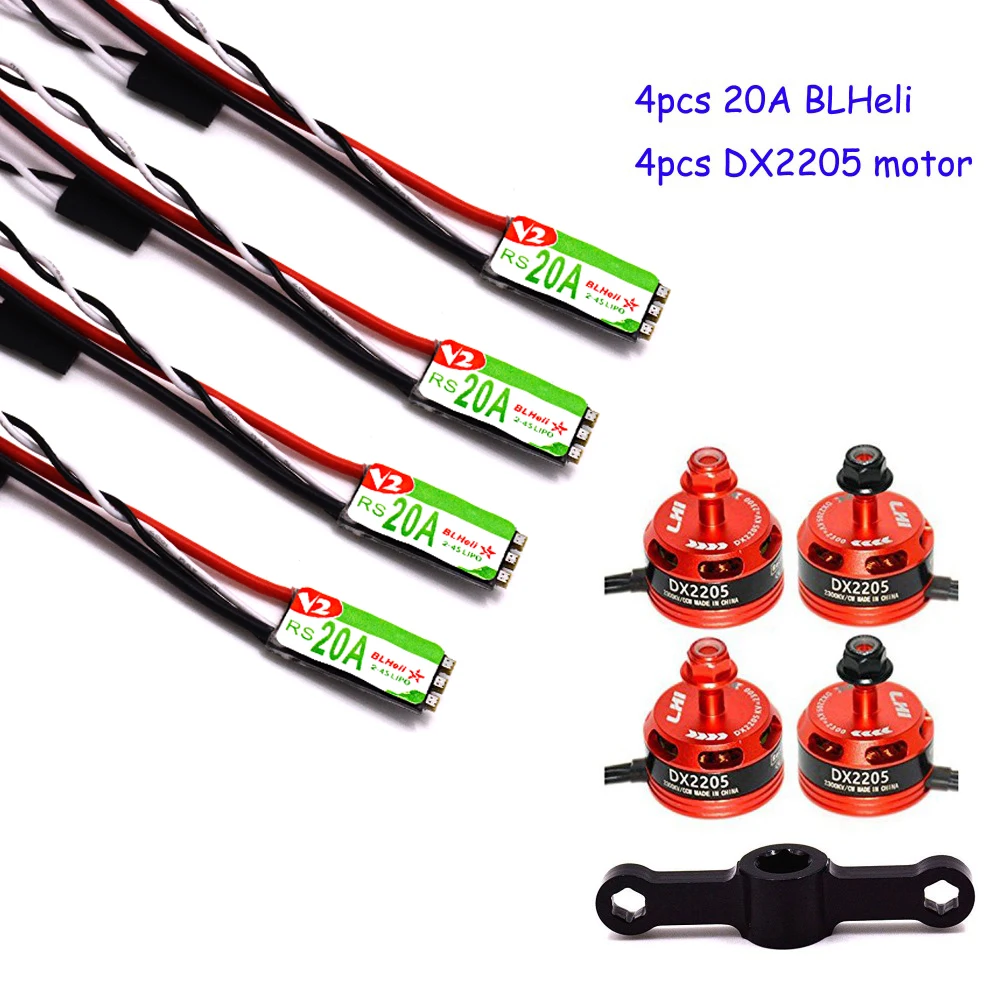

Package Included:

  • -2 x DX2205 2300 Brushless Motor (CW)
  • -2 x DX2205 2300 Brushless Motor (CCW)
  • -1xMulti-functional tool
  • -4X 20A ESC
aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

  • Use: Vehicles & Remote Control Toys
  • Remote Control Peripherals/Devices: Remote Controller
  • Material: Composite Material
  • Upgrade Parts/Accessories: Frame
  • RC Parts & Accs: Antennas
  • Technical parameters: Value 2
  • Model Number: 20A and 2300KV
  • For Vehicle Type: Airplanes
  • Tool Supplies: Assembly Category
  • Four-wheel Drive Attributes: Assemblage
  • Brand Name: LHI
