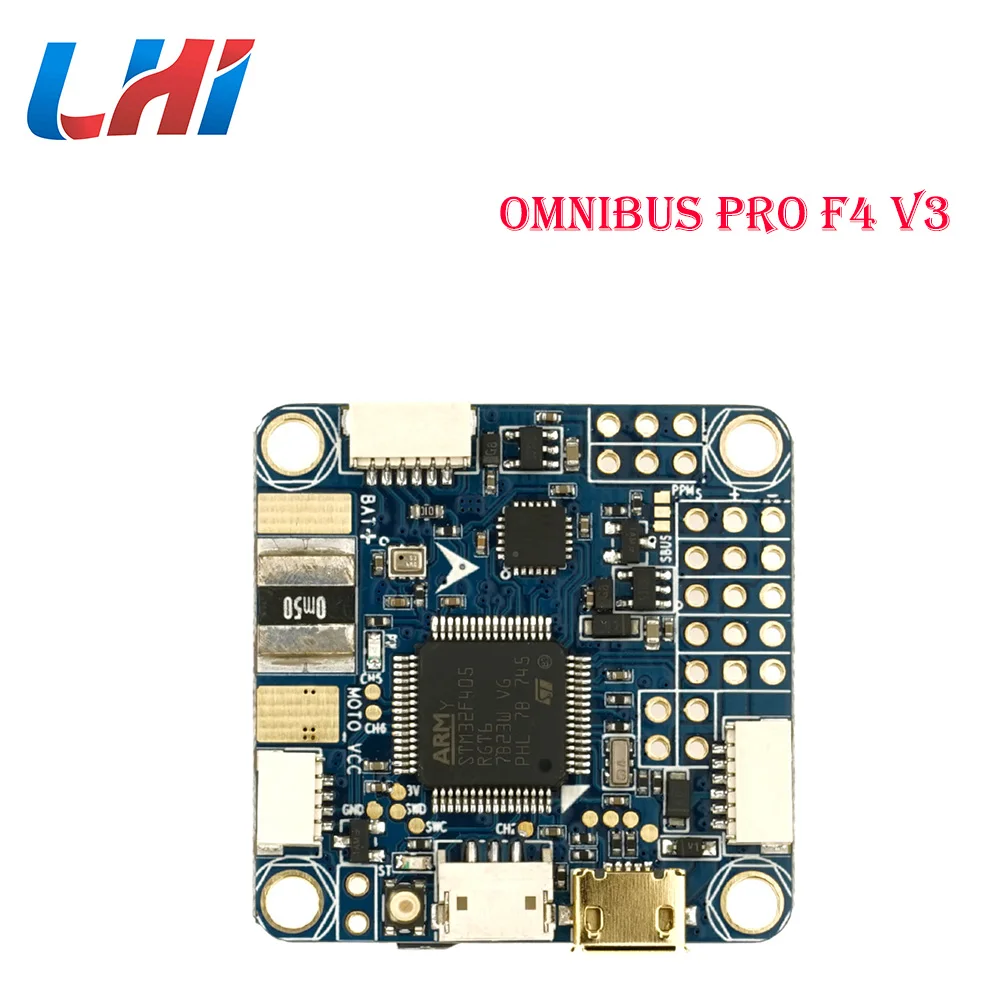

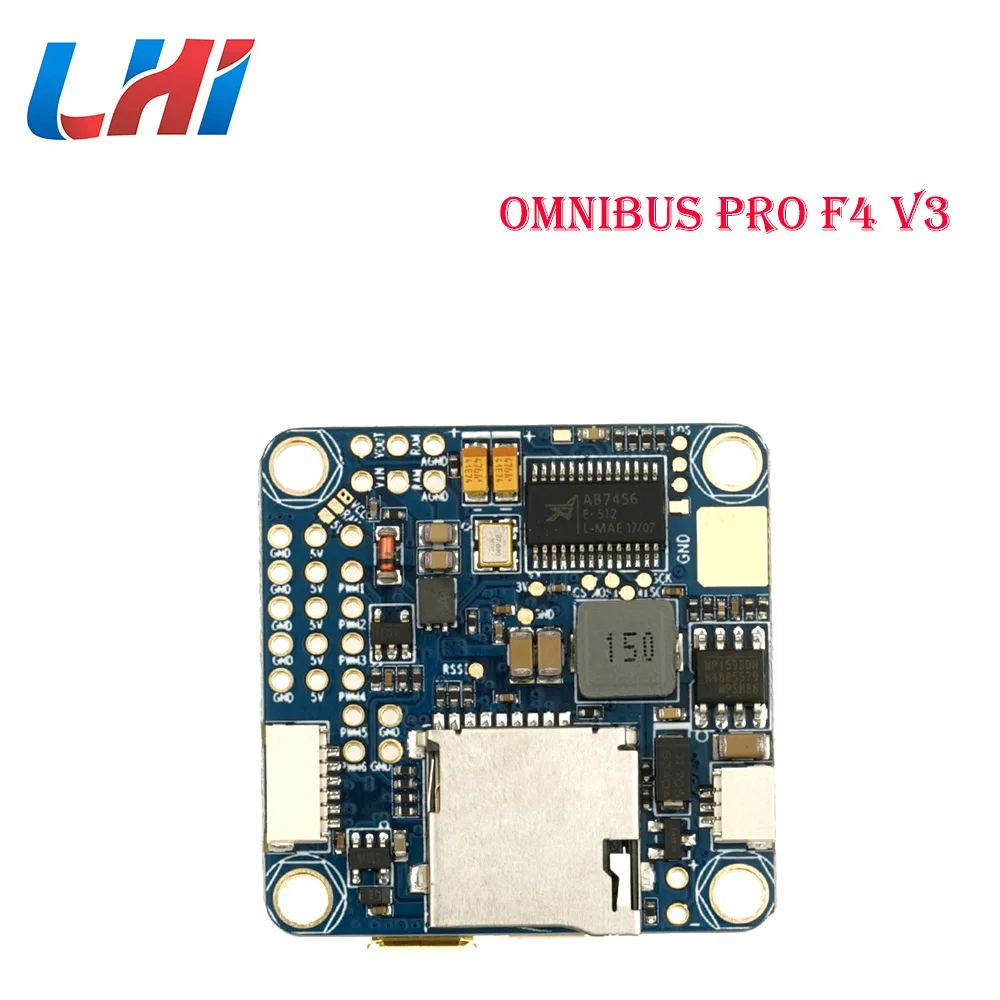

Omnibus F4 pro V3 Flight controller Airbot Authentic drones

$36.99
Color


LHI Omnibus F4 pro V3 Flight controller Airbot Authentic drones with rc plane for Camera controlador helicopter for FPV Quadcopter

Upgrade version of OMNIBUS F4, the OMNIBUS F4 Pro (Some shop call it as OMNIBUS F4 PRO V2) added SD card supports, has 5v3A BEC, LC filter for Camera and VTX, build in Current sensor for high Integration Frame

OMNIBUS F4 PRO V3 was designed a 35mmx35mm (30.5mm mount holes) community version of his AIO boards. It’s called Flip32 OMNIBUS and it’s outstanding. The great thing is that the board is based on what the community really wanted and it allows a very clean build by providing pin holes for almost every connection. You can power it directly from your battery by using BAT/GND pins.

Feautres:

  • STM32 F403 MCU (Spi connected to Gyro)
  • Buildin Current/Voltage sensor!
  • Firmware hex = OMNIBUSF4SD hex from dropdown.
  • MPU6000 (the 6 axis SPI Gyrometer + Accelerometer)
  • Smartaudio capable VTX PID Programming
  • D- Shot Supported (no Modification)
  • OSD (configured over Betaflight UI)
  • SD CARD READER + And BARO ADDED in V2
  • SBUS/PPM + DSMX Ports
  • SmartAudio V2 via J10
  • current + voltage + rssi + buzzer as pins
  • 4x 3 pin holes for ESCs + 4x signal pin holes
  • IR pins for lap timing transponder
  • Note: All Flight controllers are flashed and tested with Betaflight 3.2.1. Make sure to add the Silicone Modified Conformal Coating addition apply after testing and soldering. Protects electronics from moisture, corrosion, thermal shock, and static discharges

  • Use: Vehicles & Remote Control Toys
  • Four-wheel Drive Attributes: Assemblage
  • Size: 35MM*35MM
  • Model Number: omnibus Pro F4 V3
  • Technical parameters: Value 2
  • Brand Name: LHI
  • For Vehicle Type: Airplanes
  • Tool Supplies: Assembled class
  • Remote Control Peripherals/Devices: Controller
  • Upgrade Parts/Accessories: Omnibus F4 Pro V3
  • Material: PCB board
  • RC Parts & Accs: Flight controller
