M8N 8N/6M High Precision GPS Built in Compass

$15.99
Color

GPS Chip parameters:

  • Receiver type 72-channel u-blox M8 engine
  • GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
  • SBAS L1 C/A: WAAS, EGNOS, MSAS
  • Galileo-ready E1B/C (M8N)
  • Nav. update rate1 Single GNSS: up to 18 HZ
  • Concurrent GNSS: up to 10 Hz
  • Position accuracy2 2.0 m CEP
  • Sensitivity2 Tracking & Nav: –167 dBm
  • Cold starts: –148 dBm
  • Hot starts: –156 dBm
  • Assistance AssistNow GNSS Online
  • AssistNow GNSS Offline (up to 35 days)
  • AssistNow Autonomous (up to 6 days)
  • OMA SUPL & 3GPP compliant
  • Oscillator TCXO (M8N/Q)
  • Crystal (M8M)
  • RTC crystal Built-In
  • Noise figure On-chip LNA (M8M)
  • lowest noise figure ( M8N/Q)
  • Anti jamming Active CW detection and removal
  • onboard SAW band pass filter (M8N/Q)
  • Supported antennas Active and passive
  • Odometer Travelled distance
  • Data-logger For position, velocity, and time ( M8N)
  • Operating temp. –40° C to 85° C
  • Storage temp. –40° C to 85° C (M8N/Q)
  • 40° C to 105° C (-M8M)
  • RoHS compliant (lead-free)
  • Qualification according to ISO 16750
  • Manufactured and fully tested in ISO/TS 16949 certified production sites
  • Uses  M8 chips qualified according to AEC-Q100
  • Supply voltage 1.65 V to 3.6 V (M8M)
  • 2.7 V to 3.6 V (M8N/Q)
  • Power consumption4 23 mA @ 3.0 V (continuous)
  • 5 mA @ 3.0 V Power Save Mode
  • (1 Hz, GPS mode only)
  • Backup Supply 1.4 to 3.6 V

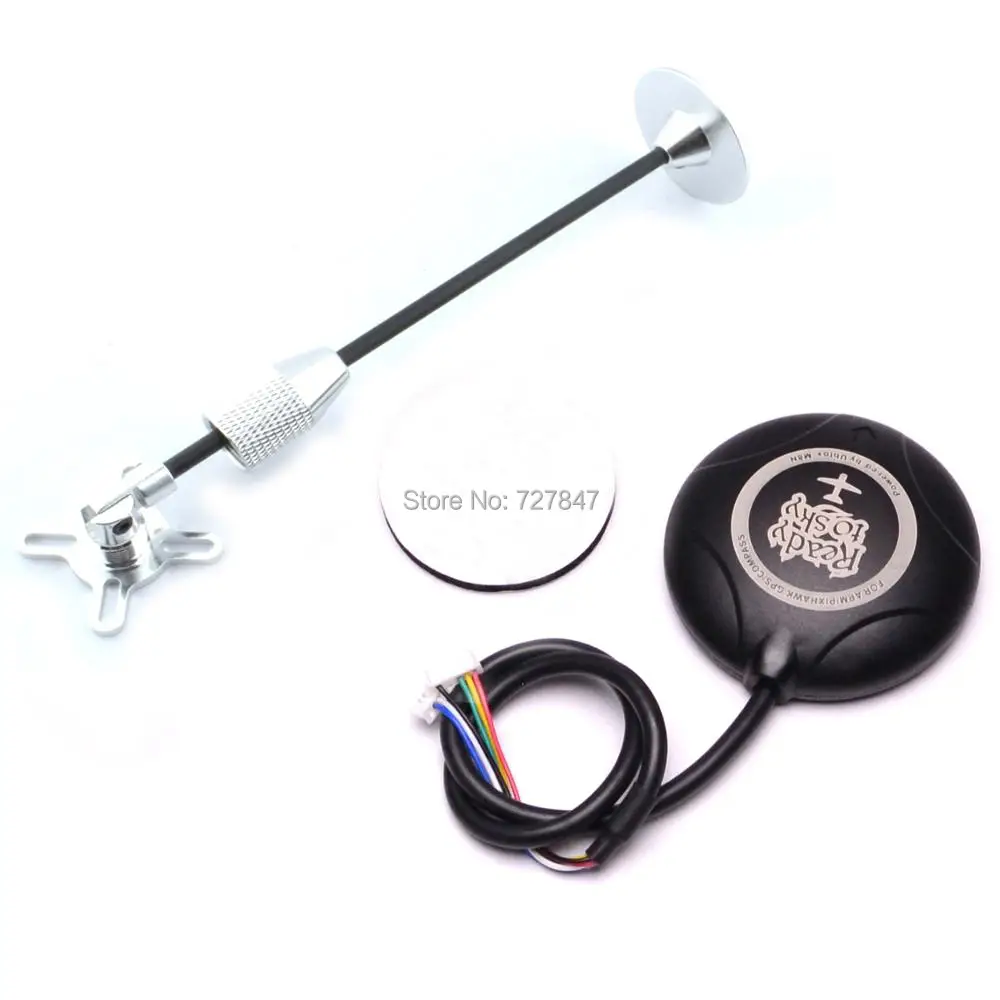

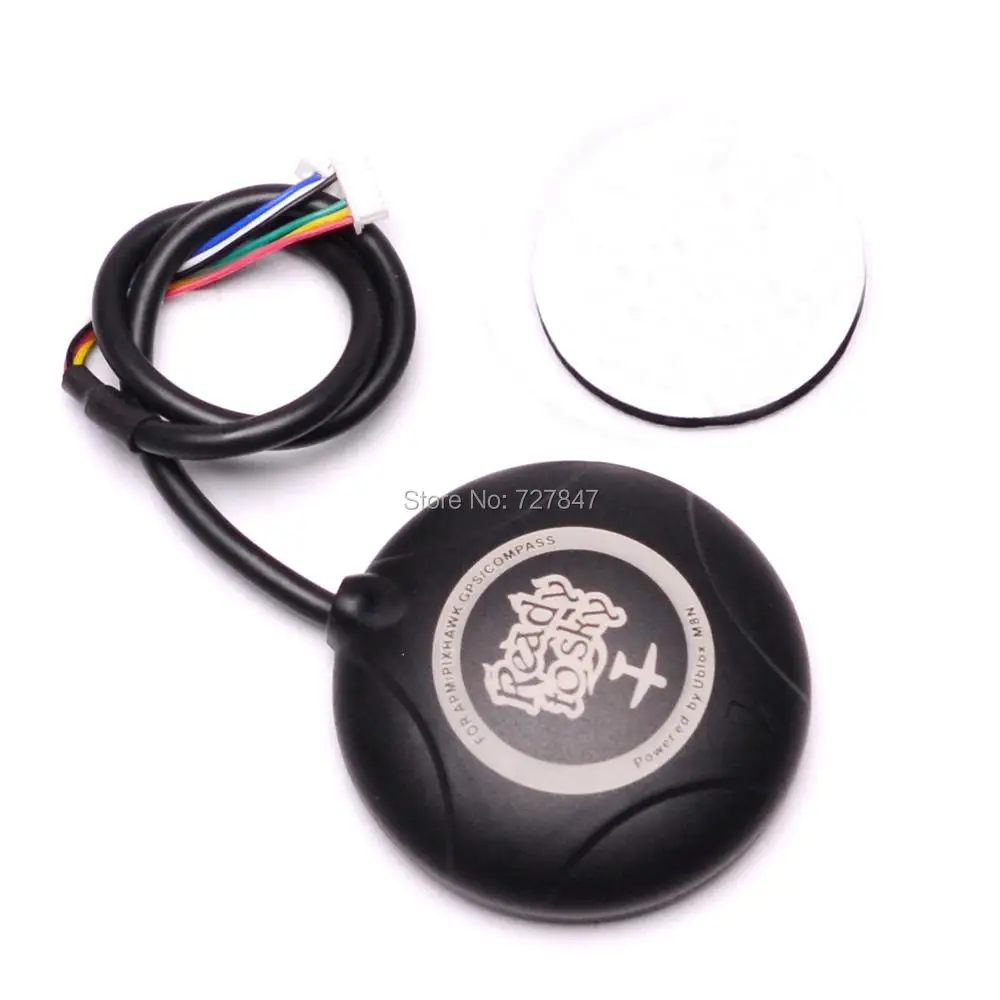

  • 1 x M8N /  6M GPS Module with translucent Shell
  • 1 x GPS Holder


  • Brand Name: Readytosky
  • Material: Metal
  • Technical parameters: Value 3
  • Model Number: OEM
  • For Vehicle Type: Airplanes
  • Tool Supplies: Cutting
  • Remote Control Peripherals/Devices: ESC
  • Use: Vehicles & Remote Control Toys
  • Upgrade Parts/Accessories: Shock Absorber
  • Four-wheel Drive Attributes: Slot
  • RC Parts & Accs: Engines
