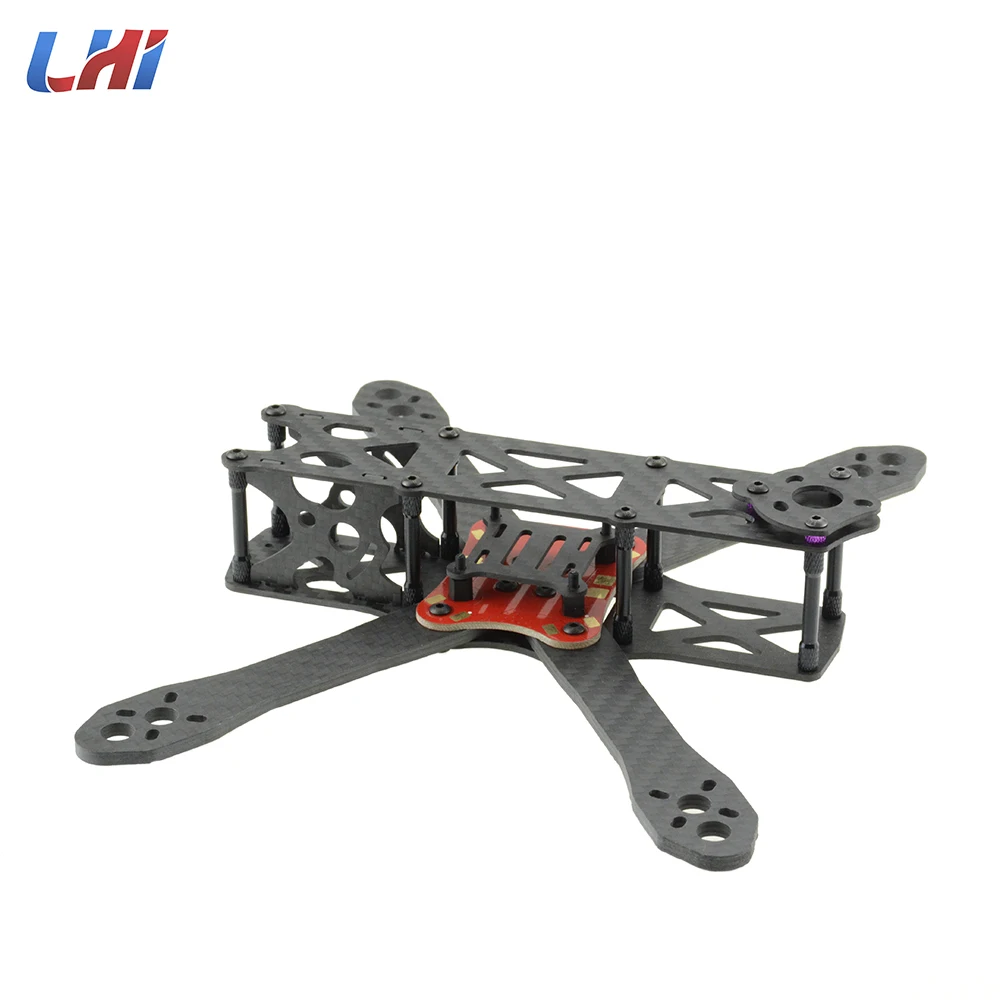

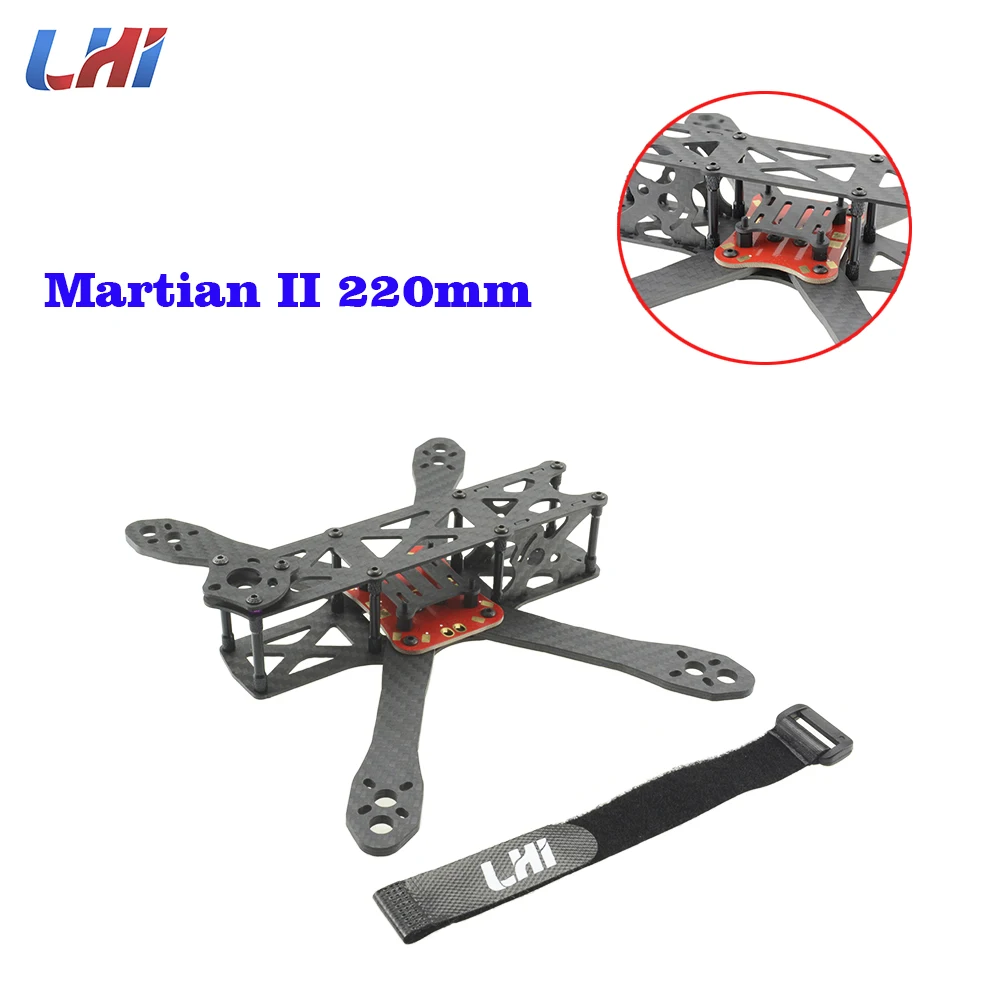

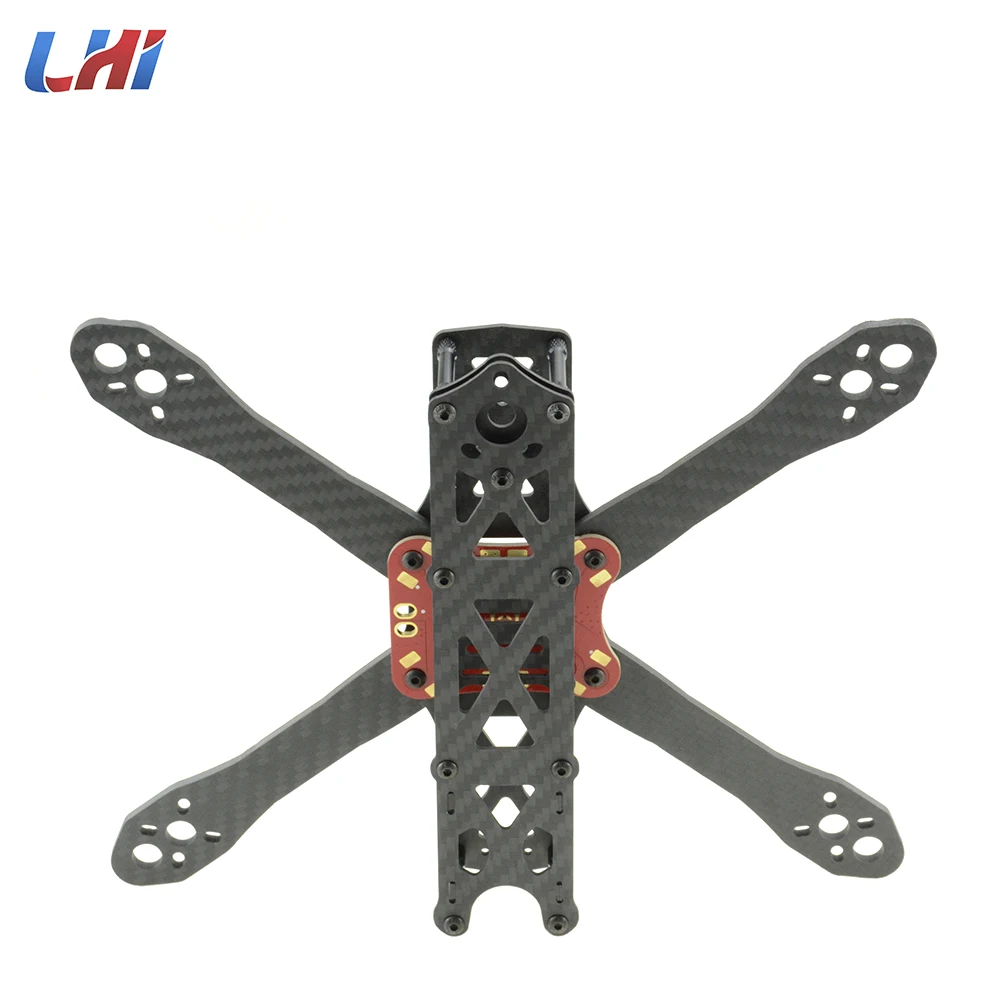

Martian II 220 220mm 4mm Arm Carbon Fiber frame kit



  • Full 3K Carbon Fiber airframe featuring a solid 4mm removable arms
  • Custom aluminum hardware to enable one tool, quick swapping of arms in race pit settings
  • Black Oxide steel screws
  • Multiple motor mounting holes to fit a variety of motors (M3 and M2 screw mounting patterns).
  • Included PDB with XT60 male plug.
  • Easy Lipo Access (suggested Lipo is a 1550mah&2300mah 3 or 4s)
  • Support for 32mm board cams as well as HS1177.
  • Support to carry HD camera (such as the GoPro 4, runcam 2, or GoPro Session)


  • Brand name: Martian II
  • Item name: 220 220mm Frame Kit
  • Wheelbase: 220mm
  • Material: Carbon fiber
  • Arm thickness: 4mm
  • Thickness of plate: the lower plate and upper plate 1.5mm
  • Weight: 145g±2

 Recommend parts (package not include):

  • ESC: 12A-20A
  • Propeller: 5030 5045
  • Battery: 3S 1500-2200
  • Flight control: CC3D   NAZE32  F3
  • Motor: 1806  2204  2205  2206
Martian II 220mm-Martian II 220mm-5Martian II 220mm-8Martian II 220mm-7Martian II 220mm-2Martian II 220mm-3Martian II 220mm-9Martian II 220mm-4


  • Use: Vehicles & Remote Control Toys
  • Upgrade Parts/Accessories: Frame
  • Four-wheel Drive Attributes: Assemblage
  • Brand Name: LHI
  • Technical parameters: Value 2
  • For Vehicle Type: Airplanes
  • Model Number: Martian II
  • Material: Carbon Fiber
  • Tool Supplies: Assembled class
  • Size: 220mm
  • RC Parts & Accs: Carbon fiber frame
  • Remote Control Peripherals/Devices: Martian II 220mm
