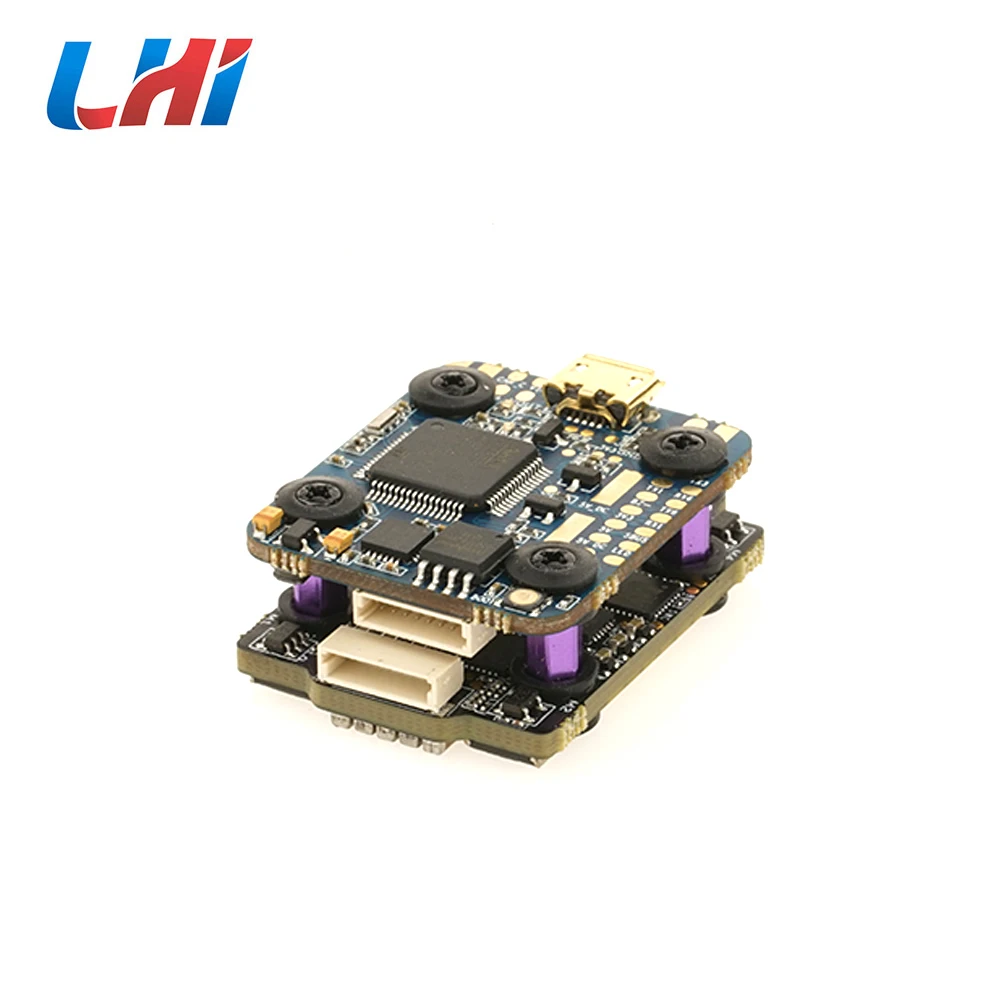

Omnibus F4 Nano Flight Controller with LC Filter& Ori32 4In1 25A Brushless ESC





  • Omnibus F4 Nano Flight Controller
  • 2-6s direct input (adaptor to connect to Wave 4in1 ESC providing power and ESC signal connection (note Wave is 2-4s))
  • MPU6000 gyro connected by SPI for low noise, clean, high frequency gyro samples
  • BMP280 Barrometer to enable altitude hold
  • Betaflight OSD
  • Onboard voltage sensor
  • On board 5v regulator, components rated to 2A - recomended 1A max to prevent heat build up)
  • Built in L-C filter to provide clean power to FPV kit
  • STM32 F405 MCU running betaflight 3.2
  • Pin headers for SBUS/PPM input
  • Output for 4 motors on JST-SH 1.0 8pin plug connects to Airbot Wave 4in1 ESC (The Option 8pin 4in1 Cable)
  • 25x25mm (20x20mm M3 mount holes)
  • Ori32 4 In 1 25A Brushless ESC
  • 32bit ESC with BLHELI32 firmware
  • Supports 2-4S lipo input
  • 4PWM input
  • Voltage output (VBAT)
  • NO BEC
  • Supports oneshot / Multishot / Dshot PWM
  • Mount holes 20x20mm
  • Supports damped light

Use: Vehicles & Remote Control Toys
Material: Composite Material
Upgrade Parts/Accessories: Frame
Brand Name: LHI
Remote Control Peripherals/Devices: ESC
RC Parts & Accs: Speed Controllers
Technical parameters: Value 2
Wheelbase: Bottom Plate
For Vehicle Type: Airplanes
Model Number: ORI32+F4NANO
Size: Mount holes 20MM*20MM
Tool Supplies: Assembled class
Four-wheel Drive Attributes: flight controller
