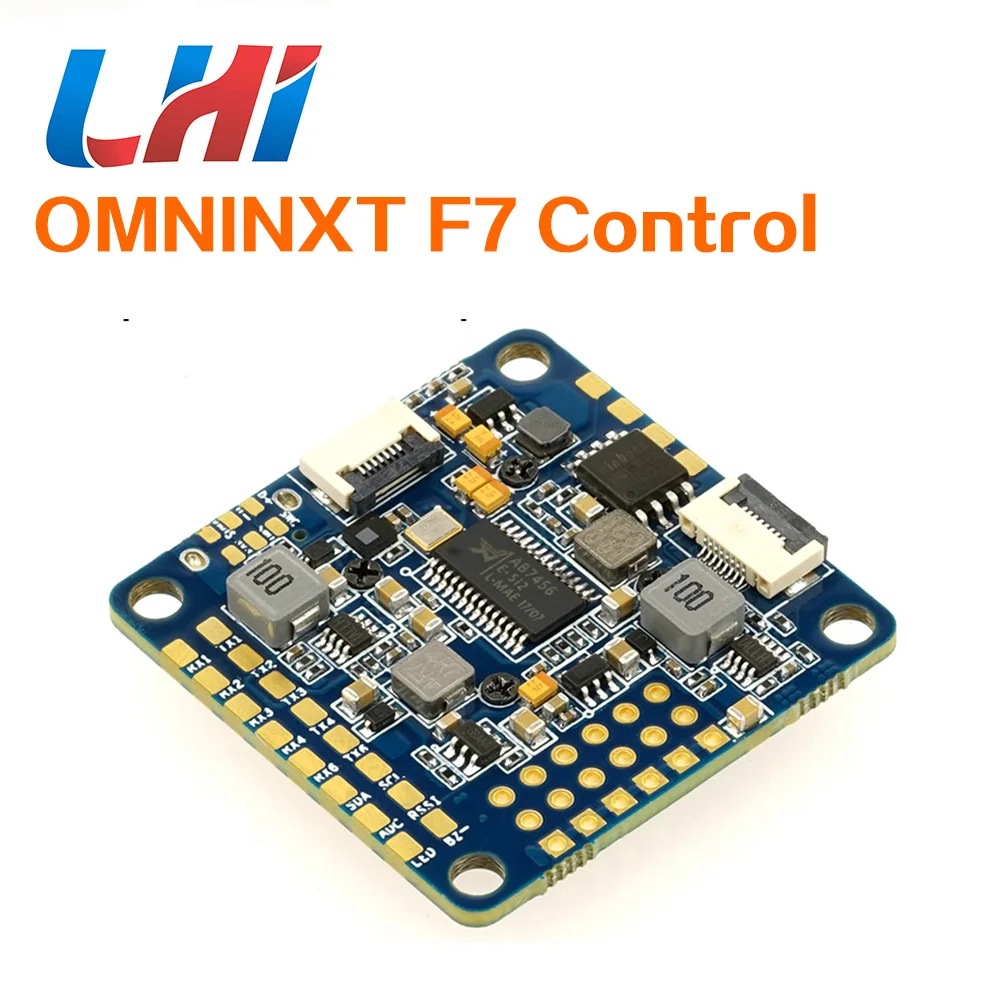

OMNIBUS OMNINXT F7 Flight Control

$51.99

 OMNIBUS OMNINXT F7 flight control drone Quadcopter with rc plane Airbot Authentic servo osd DIY helicopter

Features:

  • F7 MCU processors
  • Two gyros onboard: MPU6000 for sampling up to 8khz and ICM20608 for sampling up to 32khz
  • 30.5x30.5mm Mounting holes
  • Supports 3-6S Lipo
  • Built-in 5V 1A BEC output (Buck)
  • Built-in 8V 1A BEC with LC filter output for the camera and VTX (Buck)
  • STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD)
  • Built-in hall Current Sensor   ( No current sensor)
  • More caps to reduce power noise
  • Port for easy connection to Airbot 4-in-1 esc (SH1.0 8P)
  • Solder pads added for SmartAudio and Camera Control

Package incl.:



  • OmniNXT F7 Flight Controller x 1









Brand Name: LHI
Material: Composite Material
Upgrade Parts/Accessories: Frame
Remote Control Peripherals/Devices: Remote Controller
Four-wheel Drive Attributes: Assemblage
Tool Supplies: Assembly Category
For Vehicle Type: Airplanes
Model Number: OMNINXT F7
Technical parameters: Value 2
Size: 30.5mmx30.5mm Mounting holes
Use: Vehicles & Remote Control Toys
RC Parts & Accs: OMNIBUS
