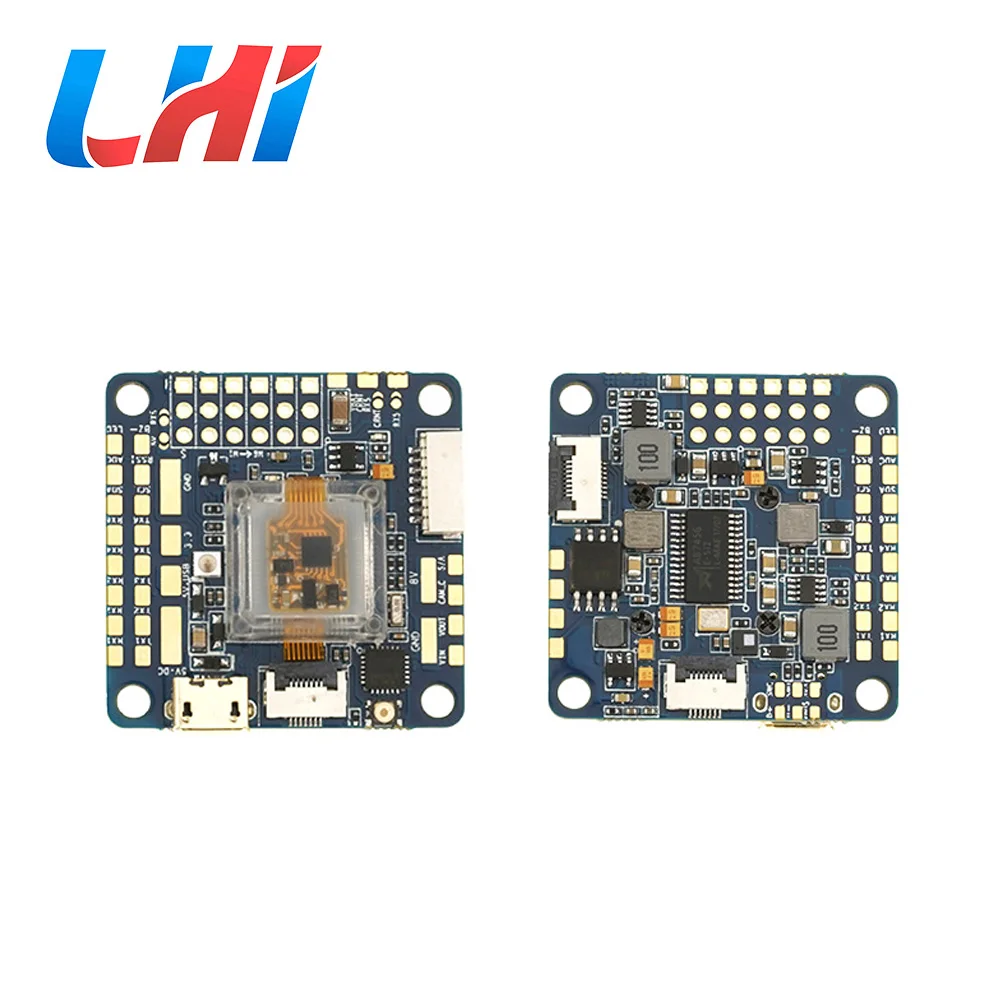

OMNINXT F7 Airbot top of the range flight





  • F7 MCU processors
  • Two gyros onboard: MPU6000 for sampling up to 8khz and ICM20608 for sampling up to 32khz
  • 30.5x30.5mm Mounting holes
  • Supports 3-6S Lipo
  • Built-in 5V 1A BEC output (Buck)
  • Built-in 8V 1A BEC with LC filter output for the camera and VTX (Buck)
  • STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD)
  • More caps to reduce power noise
  • Port for easy connection to Airbot 4-in-1 esc (SH1.0 8P)
  • Solder pads added for SmartAudio and Camera Control

Package include:


  • OmniNXT F7 Flight Controller x 1

Use: Vehicles & Remote Control Toys
Material: Composite Material
Size: 30.5x30.5mm Mounting holes
Four-wheel Drive Attributes: Assemblage
Model Number: OmniNXT F7
Technical parameters: Value 2
Brand Name: LHI
Remote Control Peripherals/Devices: Remote Controller
For Vehicle Type: Airplanes
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Supports 3-6S Lipo
RC Parts & Accs: Flight Control
