Skywalker Turbo Ix5 Drone Rc Mini FPV Quadcopter

Save 4%
Original price $130.99
Current price $125.99

FPV Racer drone Turbo ix5 200mm W/7075 alum shell compatible LHI 20A

Blheli_S 2-4S ESC+2205_S Brushless Motor with Mateck XT60

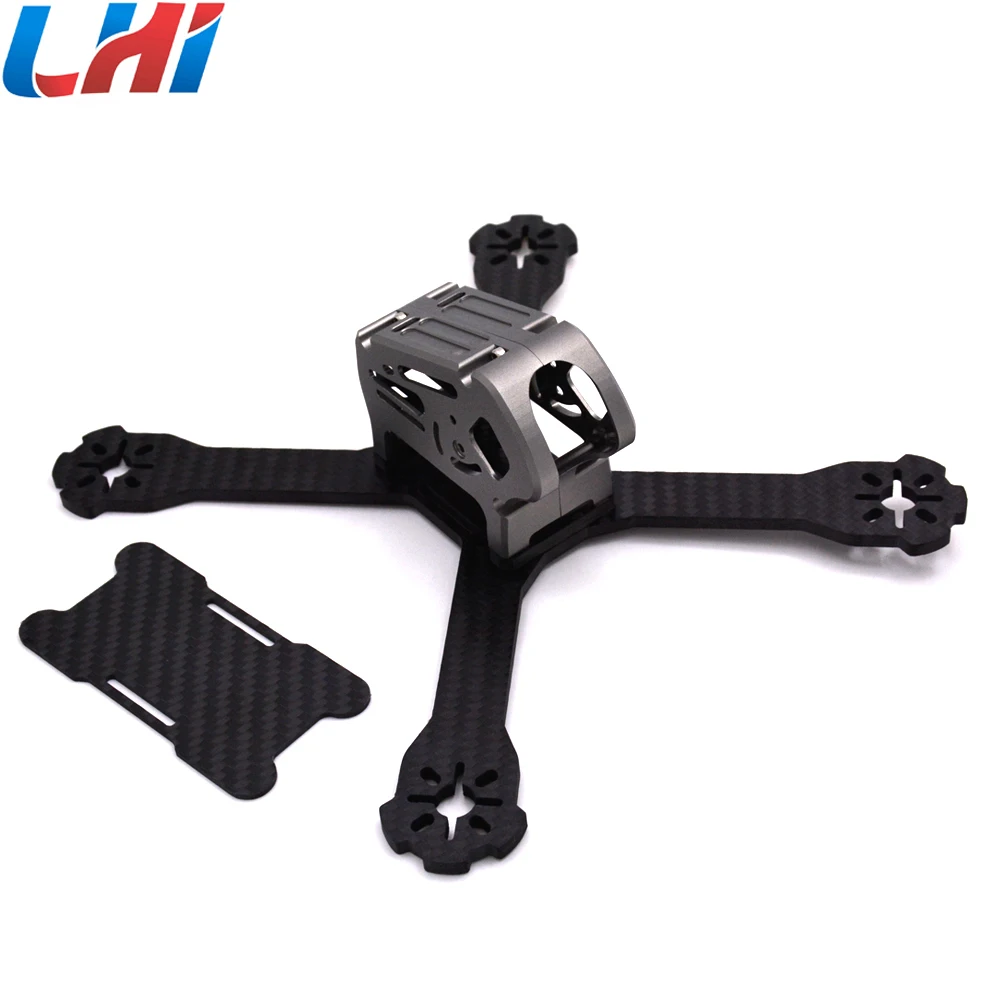

X200 200mm FPV Racing Quadcopter Frame Kit

Feature:

  • Frame Size : 200 mm
  • weight : 80 g
  • Bottom Plate : 4mm 3K carbon
  • Upper Shell: 7075 Aluminum-alloy with special oxidation
  • Screws: 12.9 Class YFS screw

Recommend but not included:

  • FC: f3 integrated with PDB (iFlight REVO Bee F4)
  • Motor: 2205 2300-2600KV(iPower 2205)
  • ESC: 25 - 30A (iPeaka Dshot 30A)
  • Propeller : 5040 - 5045
  • Battery : 3 - 4S 1000 - 1800mah
  • Transmitter set

20A BLheli_s Specification:

  • Input voltage:2-4s batterys
  • Continued Currency:20A
  • Max Currency:30A>= 10 seconds
  • Dimations:10.5X23.5X5mm
  • Weight:3.9g
  • MCU:EFM8BB21
  • Program:BLHeli_s
  • Driver Type:Independent half bridge driver chip and all N channels with MOS Tube

LHI 2205_S Brushless Motor  specifications:

  • KV: 2300
  • Diameter of the stator: 22mm
  • Stator Length: 5mm
  • Shaft diameter: 4.0mm
  • -Motor dimensions (Diameter * Len): 27.5 * 34.35mm
  • -Idle current (10) @ 10 V (A): 0.6
  • -cells No. of (Lipo): 3-4 S
  • - Continuous maximum power (W) 180 S: 495
  • -Internal resistance: 65 m :emoji:
  • -Max current (180 s): 30A
  • -Max. Current Effciency: (3-6A)> 81%

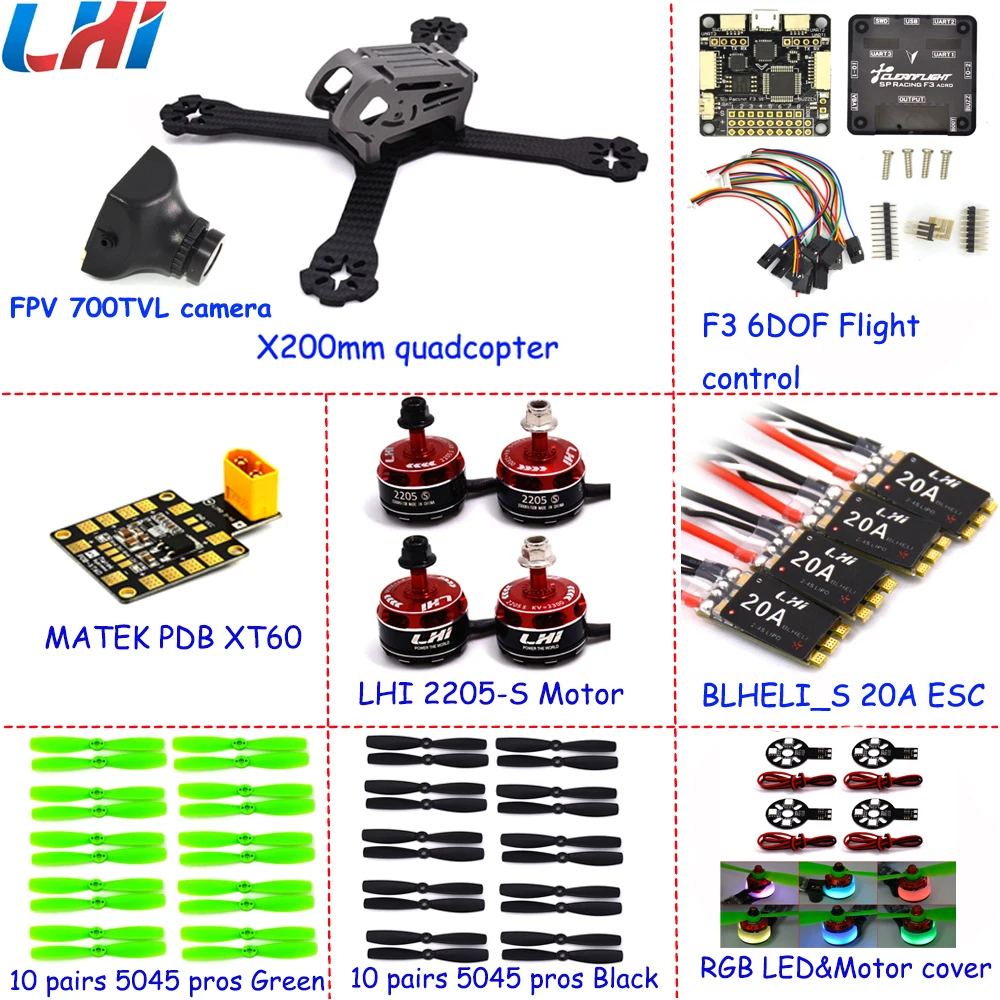

Package included:

  • 1set x200mm frame

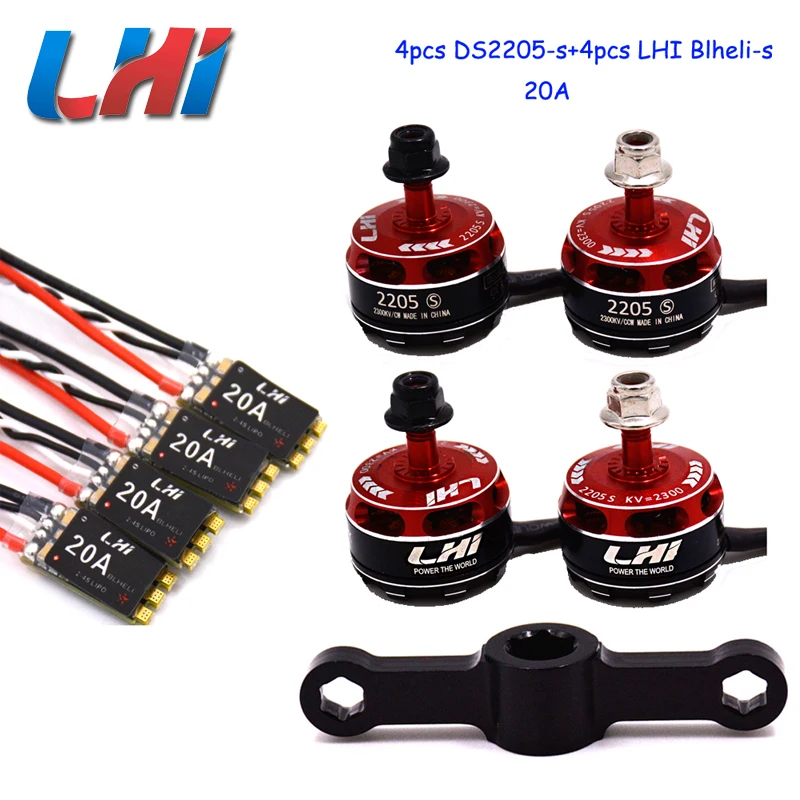

  • 4 pcs20A BLheli_s Brushless ESC
  • 4pcs LHI 2205_s 2300KV motors(2CW&2CCW)
  • 1 set F3 6DOF flight controller

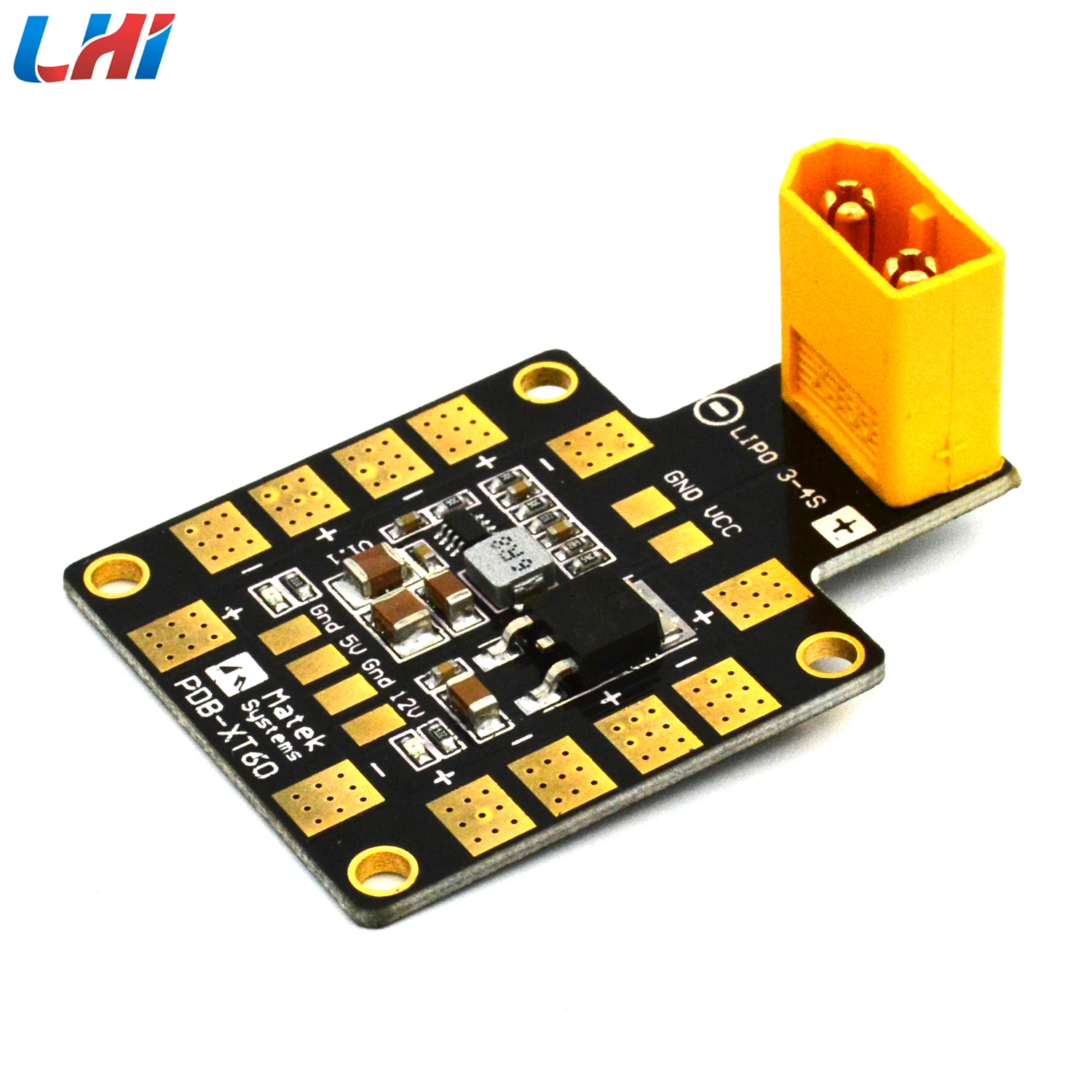

  • 1 Mateck XT60 PDB\

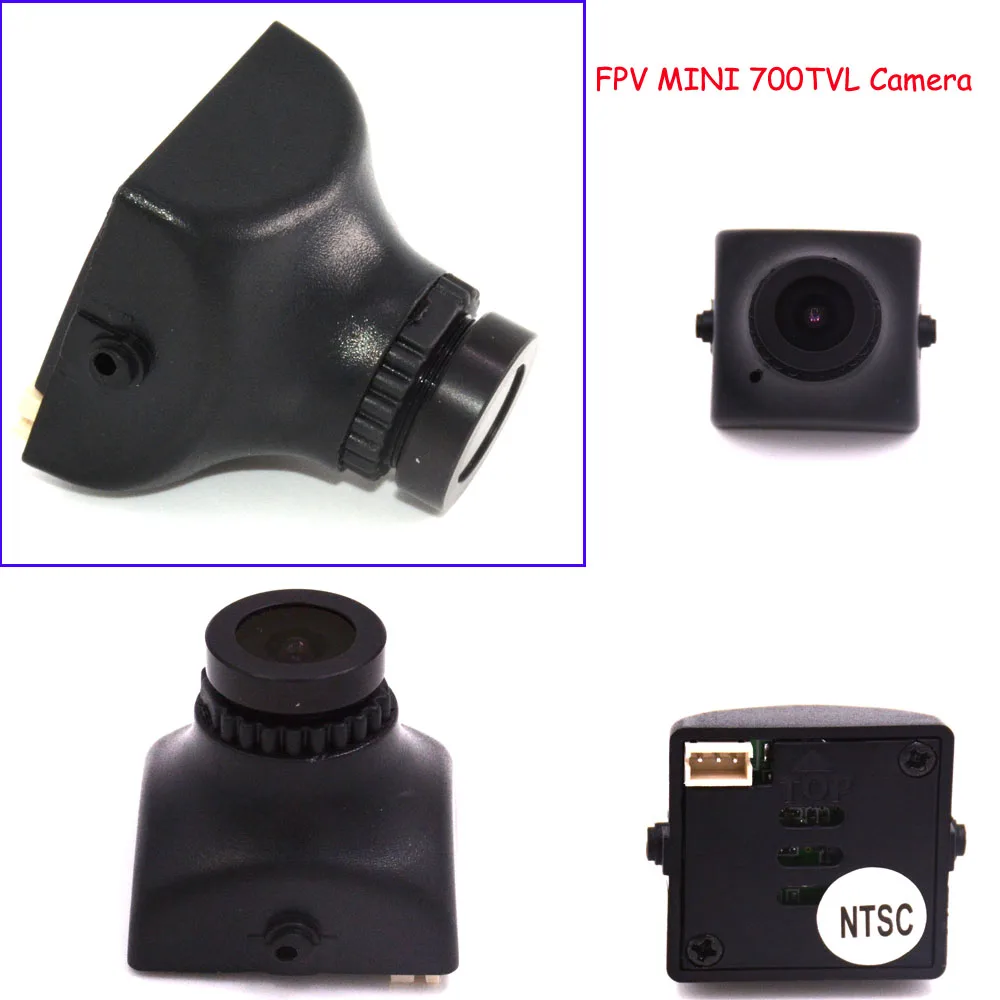

  • 1pc 700TVL FPV Camera x 1
  • 10pairs 5045Green propellers&10 pairs 5045 black propellers
  • 4pcsRGB Circle 12V LED board(7 colors)
  • 4pcs Motor Cover
aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

  • Type: Airplane
  • Features: Remote Control
  • Aerial Photography: No
  • Plugs Type: XT60
  • Warranty: no
  • Flight Time: 8-15 minites
  • Controller Battery: 2-4S
  • Material: Carbon Fiber
  • Material: Metal
  • Charging Time: 3-4hours
  • Controller Mode: MODE2
  • Remote Distance: 200-500Meters
  • State of Assembly: Ready-to-Go
  • Model Number: X200
  • Control Channels: 6 Channels
  • Brand Name: LHI
  • Power Source: Electric
  • Remote Control: Yes
  • Charging Voltage: 110-240V
  • Warning: outdoors
  • Dimensions: 15cmx12cmx10cm
  • Age Range: Grownups
  • Package Includes: motor
