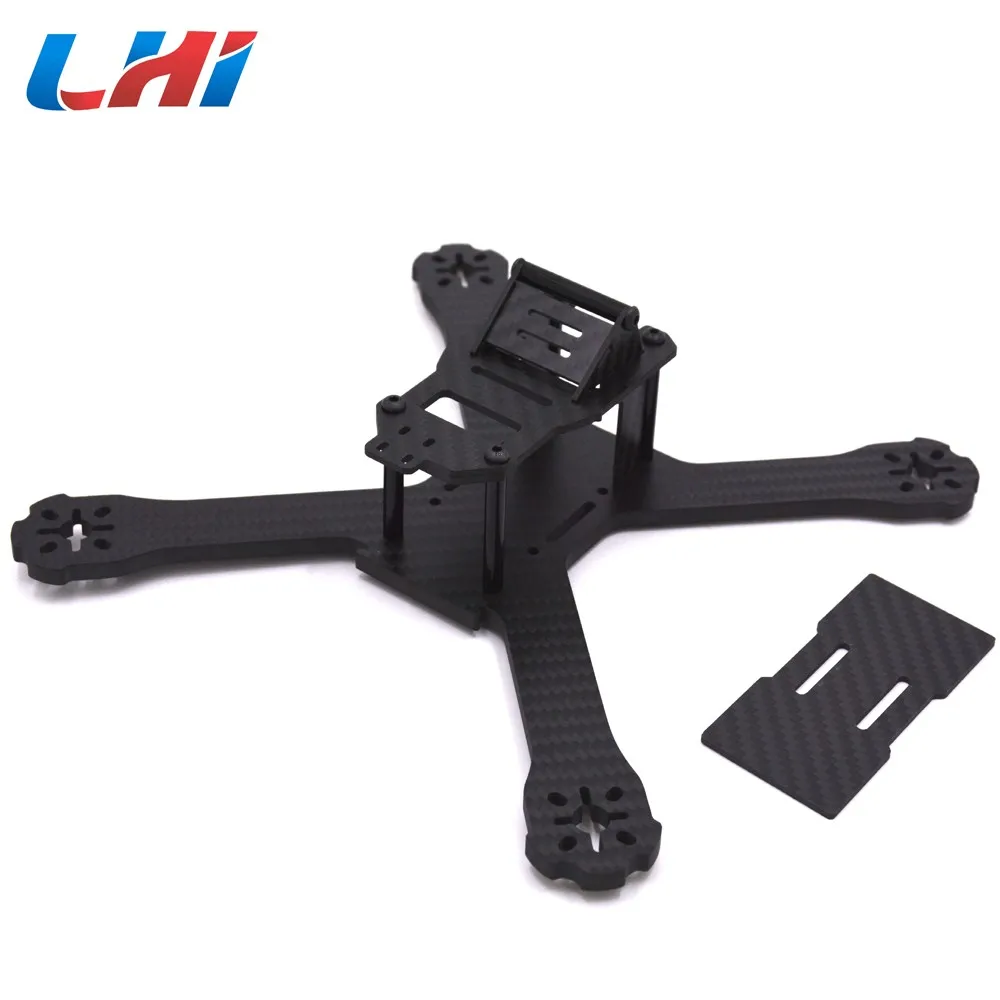

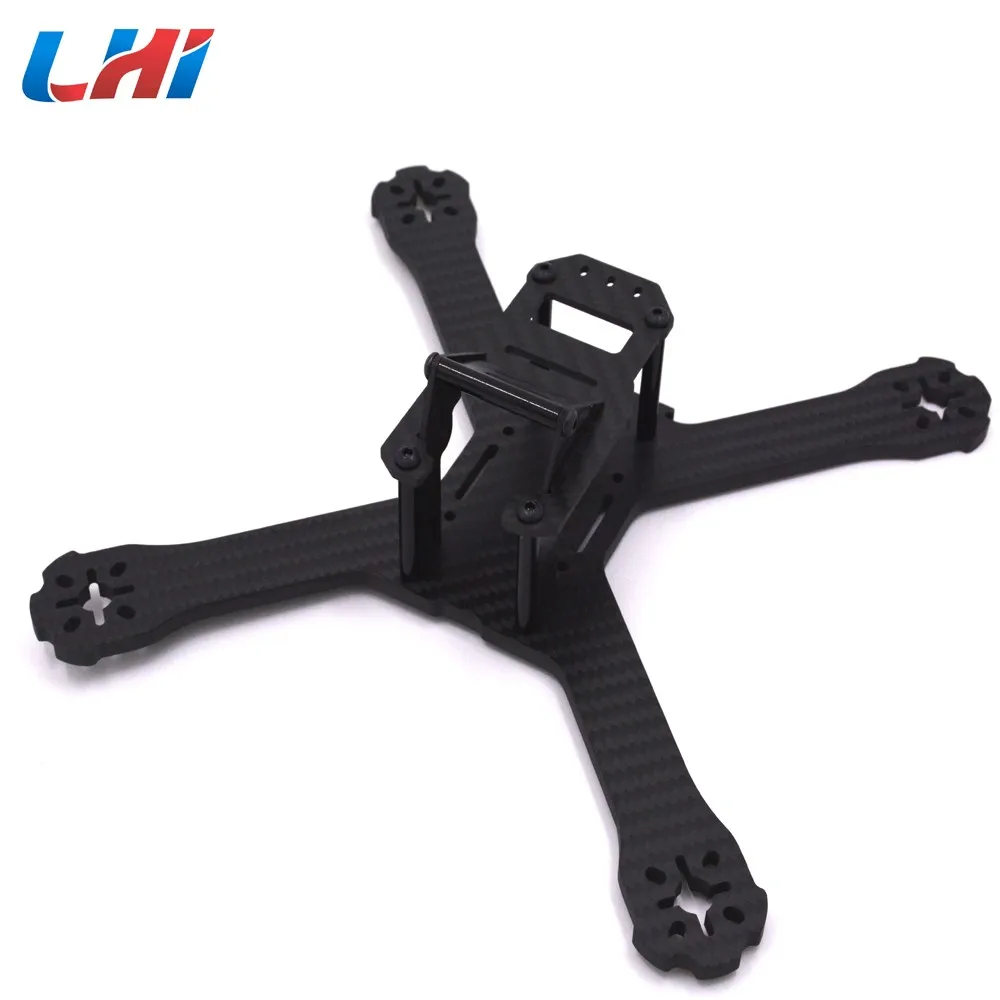

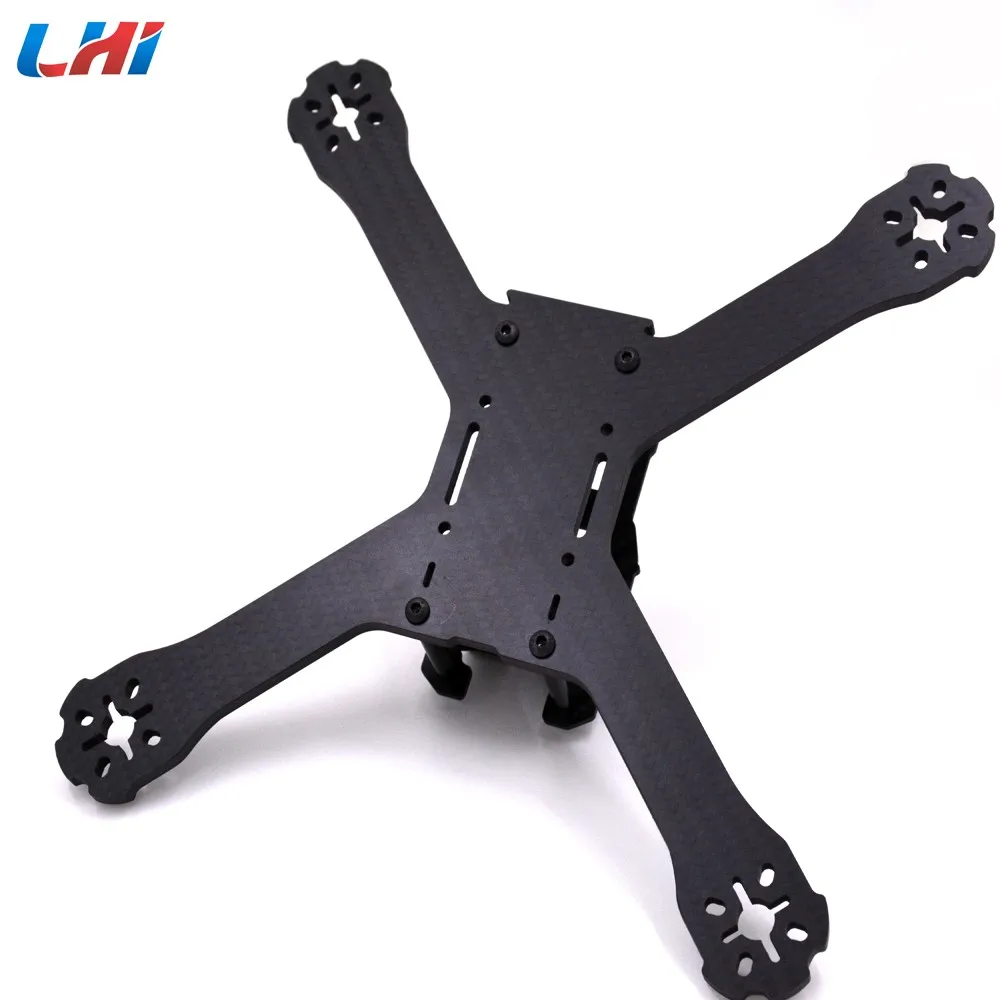

X210 V+ 214mm Carbon Fiber Frame


Product feature:

  • Wheelbase: 214mm
  • Material: carbon fiber
  • Weight:3mm frame arm version: 72g (frame + hardware), 77g (with battery protector plate)
  • 4mm frame arm version: 88g (frame + hardware), 93g (with battery protector plate)


  • Full 3K Carbon Fiber frame.
  • 4mm frame arms.
  • Dual purpose FPV and HD camera mounting solution.
  • Compact size for 5" propellers, 214mm motor to motor.
  • Multiple motor mounting holes to fit a variety of motors (M3 and M2 screw mounting patterns).
  • "Bumpers" on the end of the arms to protect the motor during a crash, just like the QAV250.

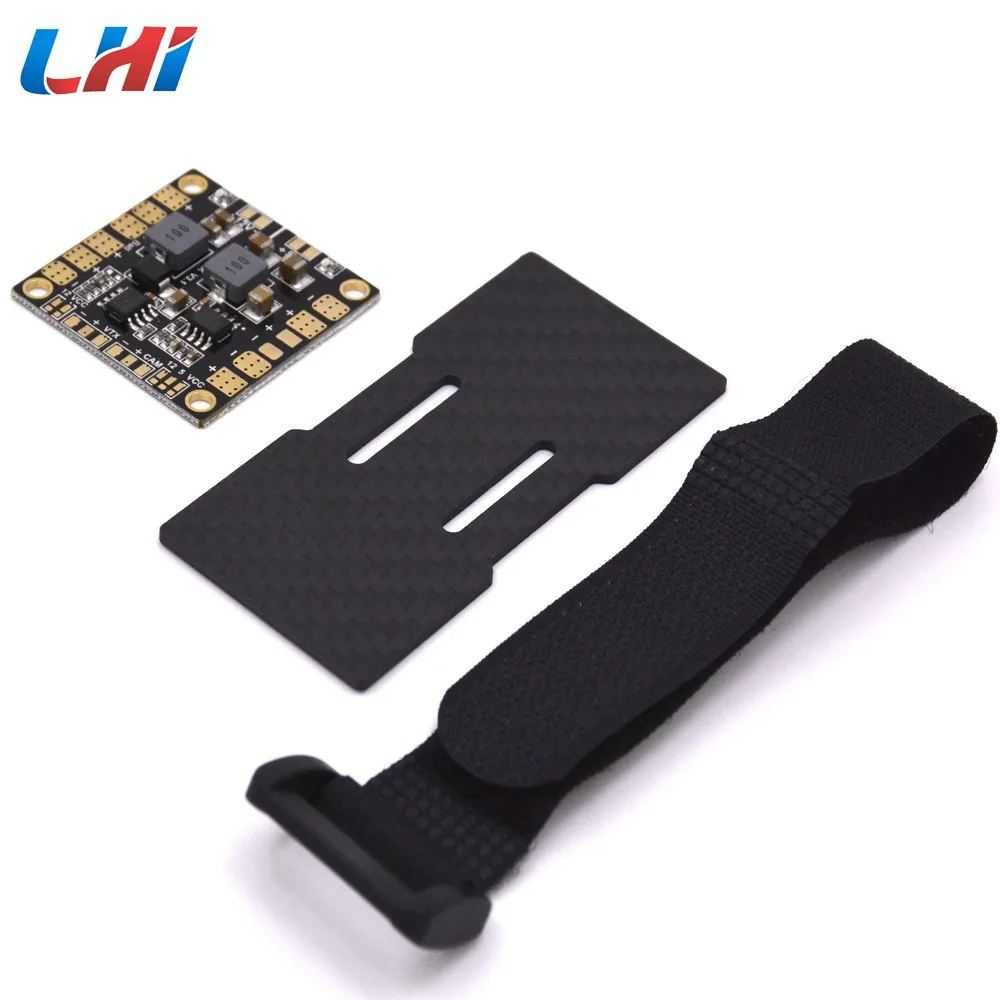

  • Included power distribution board and XT-60 Pig-Tail to power ESCs and FPV flight electronics.
  • LiPo battery protection plate included.
  • Support to carry HD camera at 35 degree angle(such as the GoPro 4, Mobius, etc).
  • Lightweight and rigid

Package included:

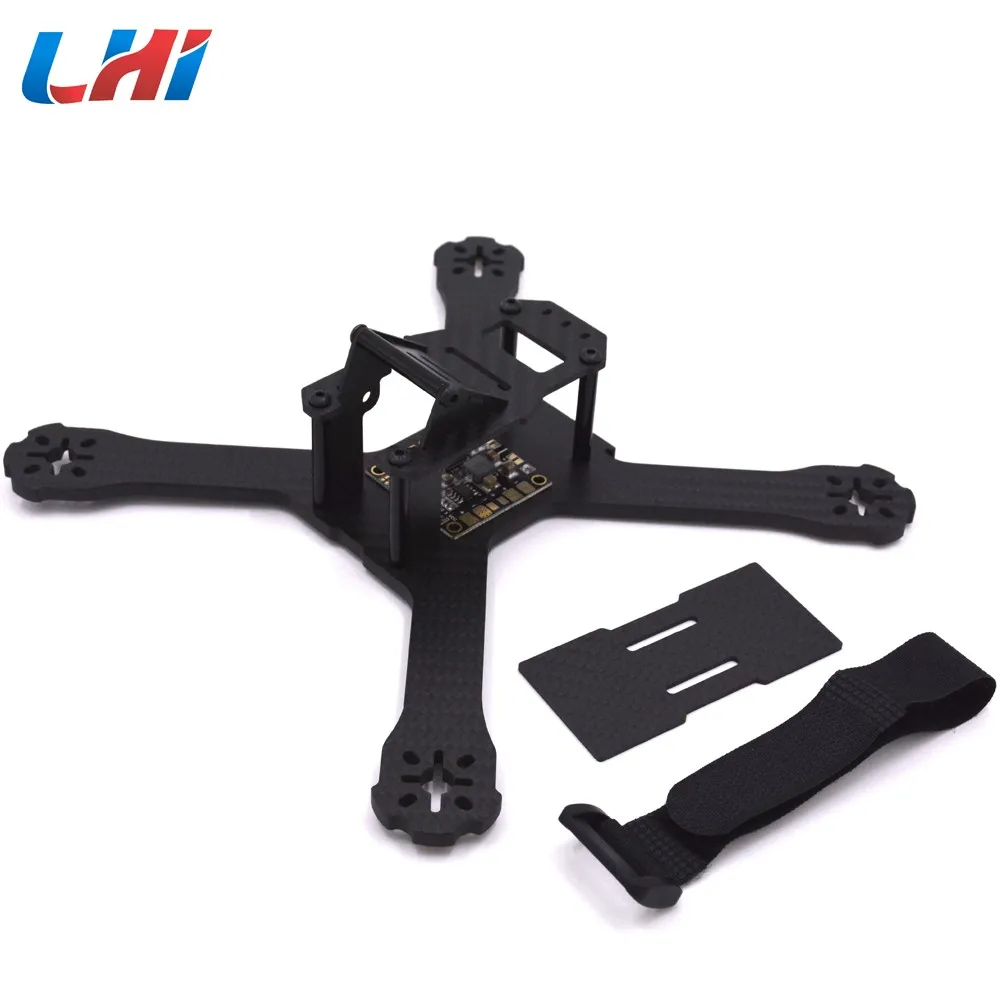

  • 1 x Realacc X210 carbon fiber frame kit
  • 1 x Matek PDB-XT60 5V & 12V  Or  matek V3 PDB


  • Use: Vehicles & Remote Control Toys
  • Remote Control Peripherals/Devices: Remote Controller
  • Model Number: X210
  • Material: Composite Material
  • Upgrade Parts/Accessories: Frame
  • RC Parts & Accs: Antennas
  • Technical parameters: Value 2
  • For Vehicle Type: Airplanes
  • Four-wheel Drive Attributes: Assemblage
  • Tool Supplies: Assembled class
  • Brand Name: LHI
